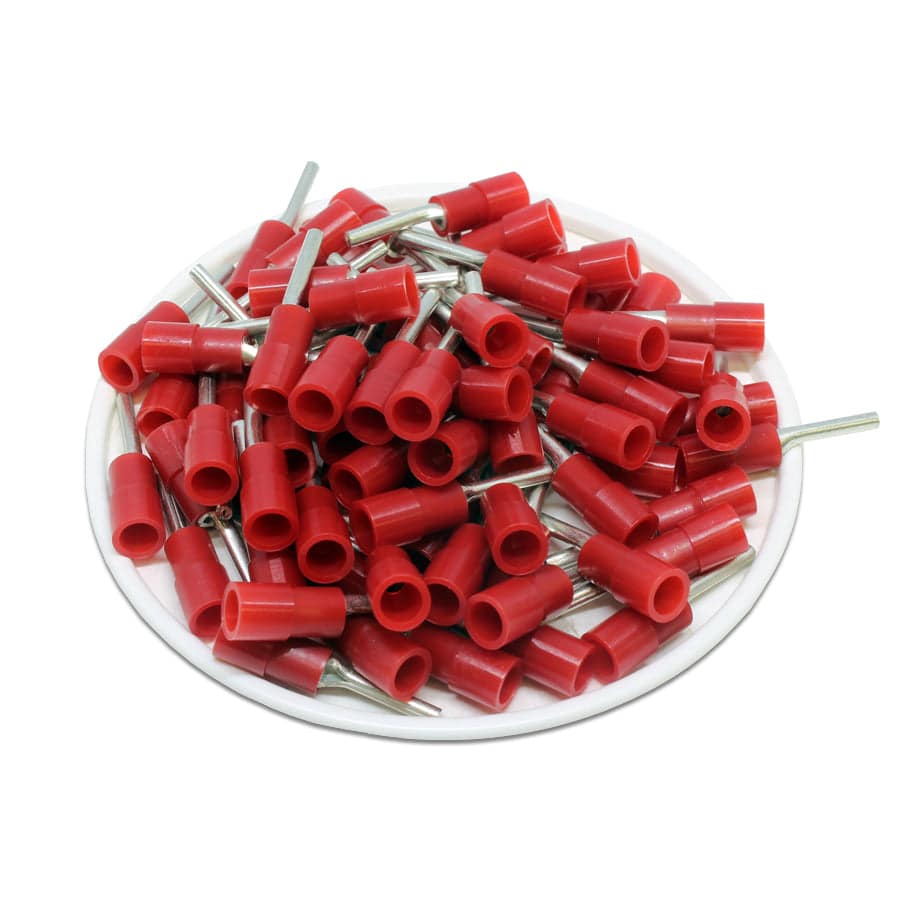

-70%PTNYB1-12 - Nylon Insulated Pin Terminals - 22-16 AWG - Redā
$9.48
$2.84The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 0.7mm (0.03") |
| L: | 22.8mm (0.89") |
| F: | 12.0mm (0.47") |
| E: | 11mm (0.43") |
| W: | 1.9mm (0.07") |
| D: | 4.5mm (0.17") |
| D1: | 1.7mm (0.06") |
| Max Temperature Rating: | 105oC |
| Max Voltage Rating: | 600 Volts |
| Max Electrical Current: | 18AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
