$31.86

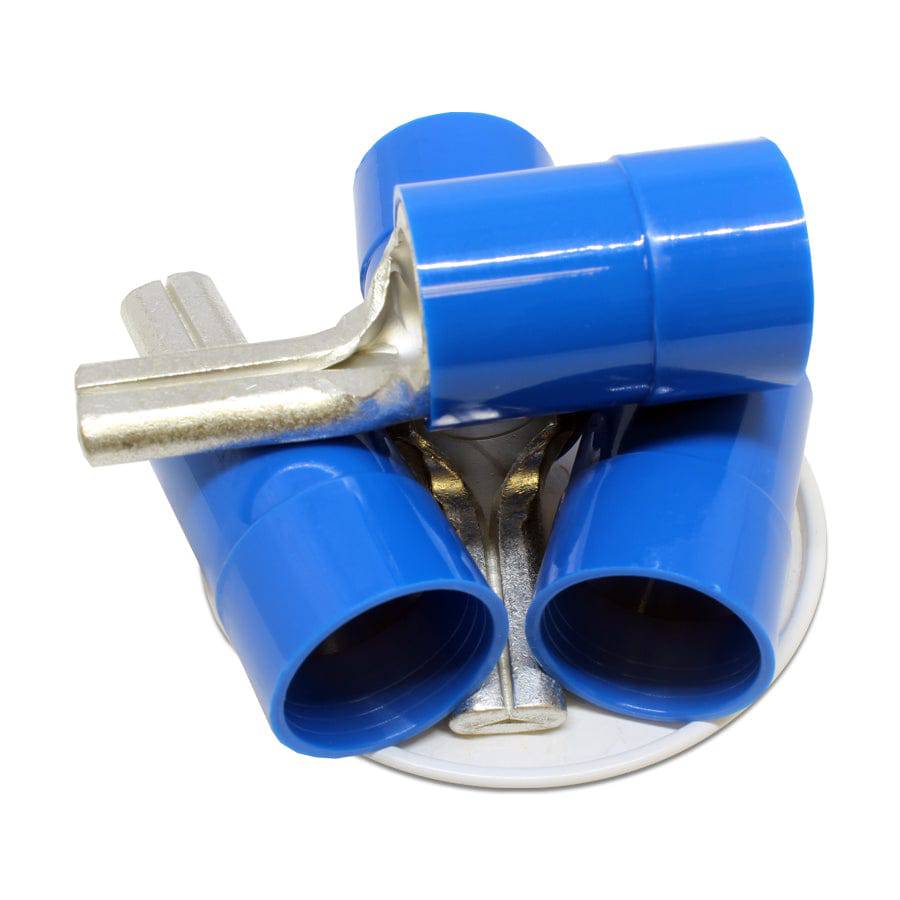

PTNYB120-27 - Nylon Insulated Pin Terminals - 4/0 AWG - Blueā
$31.86
The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 4/0 AWG |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 2.7mm (0.11") |
| L: | 76.0mm (3.00") |
| F: | 36.2mm (1.40") |
| E: | 39.8mm (1.60") |
| W: | 13.7mm (0.57") |
| D: | 24.1mm (0.95") |
| D1: | 16.6mm (0.66") |
| Max Temperature Rating: | 105oC |
| Max Voltage Rating: | 600 Volts |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
