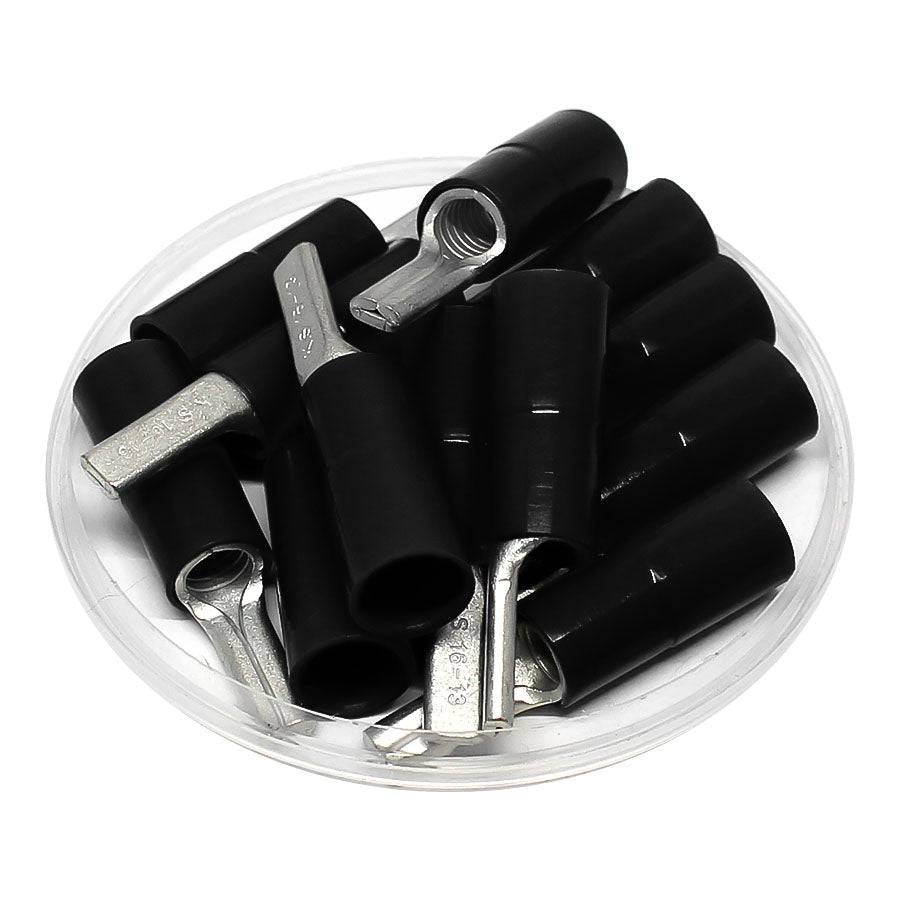

-70%PTNYB16-13B - 6 AWG Nylon Insulated Pin Terminals, 13mm Pin, Black, 25 Pieces—
$15.74
$4.72The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 6 AWG |
| Color: | Black |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 1.2mm (0.04") |
| L: | 37.0mm (1.45") |
| F: | 13.0mm (0.51") |
| E: | 20.9mm (0.82") |
| W: | 5.5mm (0.22") |
| D: | 10.6mm (0.417") |
| D1: | 5.8mm (0.23") |
| Max Temperature Rating: | 105°C |
| Max Voltage Rating: | 600 Volts |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
