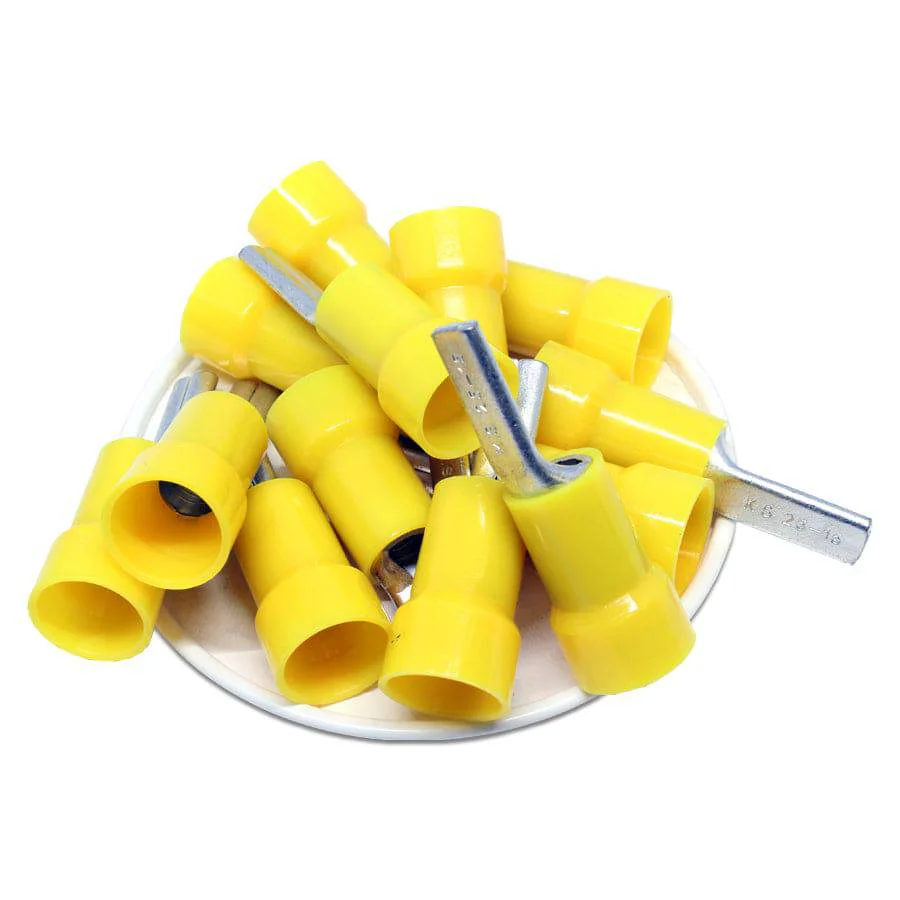

PTNYB25-15 - Nylon Insulated Pin Terminals - 4 AWG - Yellowā
$19.46
The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
| Wire Size: | 4 AWG |
| Color: | Yellow |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 1.2mm (0.04") |
| L: | 44.0mm (1.77") |
| F: | 15.0mm (0.59") |
| E: | 24.2mm (0.95") |
| W: | 6.8mm (0.27") |
| D: | 12.4mm (0.49") |
| D1: | 7mm (0.28") |
| Max Temperature Rating: | 105oC |
| Max Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
