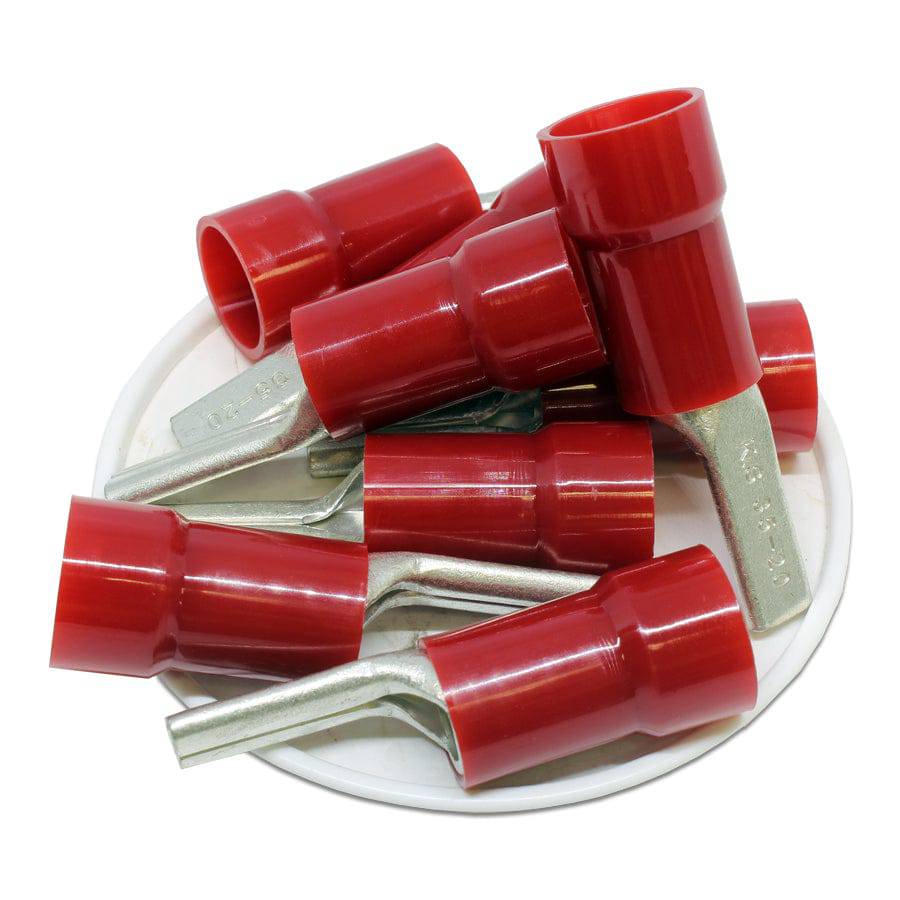

PTNYB35-20 - Nylon Insulated Pin Terminals - 2 AWG - Red—
$13.11
The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 2 AWG |
| Color: | Red |
| T: | 1.5mm (0.059") |
| L: | 52.5mm (2.1") |
| F: | 20mm (0.79") |
| E: | 28mm (1.1") |
| W: |
8mm (0.32") |
| D: |
14mm (0.55") |
| D1: |
8.4mm (0.33") |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Max Voltage Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 170AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
