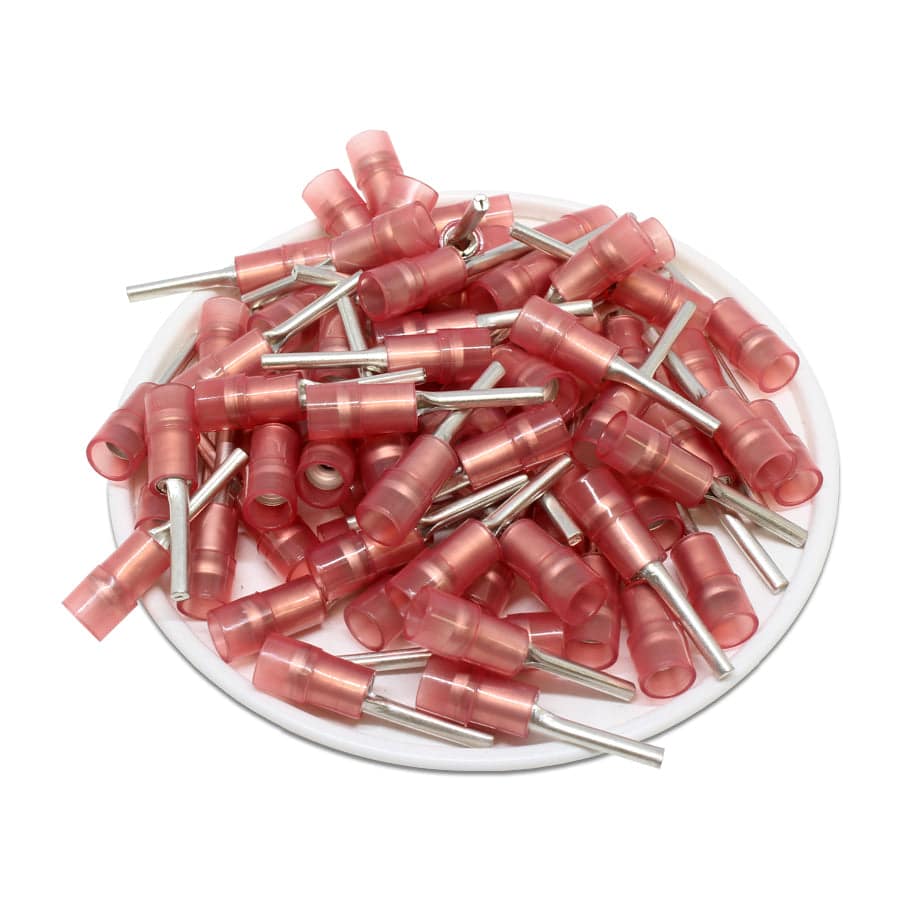

PTNYD1-13 - Nylon Insulated Pin Terminals - 22-16 AWG - Double Crimpā
$14.42
The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.8mm (0.03") |
| L: | 23.8mm (0.93") |
| F: | 13.0mm (0.52") |
| E: | 11.0mm (0.43") |
| W: | 1.9mm (0.08") |
| D: | 4.5mm (0.17") |
| D1: | 1.7mm (0.07") |
| Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Maxed Electrical Current: | 18AMP |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
