$14.72

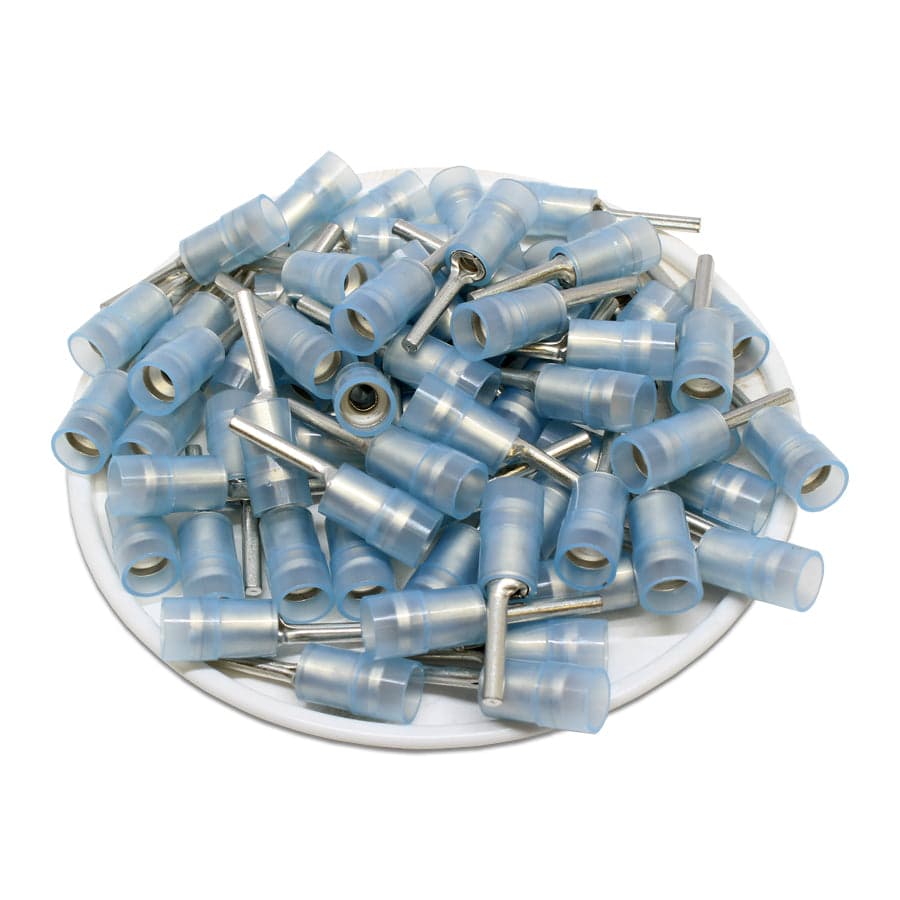

PTNYD2-12 - Nylon Insulated Pin Terminals - 16-14 AWG - Double Crimp—
$14.72
The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 16-14Â AWG |
| Color: | Blue |
| L: | 22.8mm (0.898") |
| F: | 12.0mm (0.472") |
| E: | 11.0mm (0.433") |
| W: | 1.9mm (0.075") |
| D: | 5.2mm (0.205") |
| D1: | 2.3mm (0.091") |
| T: | 0.8mm (0.031") |
| Terminal Material: | Copper |
| Surface Treatment: | Tin Plated |
| Electrical Rating: | 105°C - 600 Volts |
| Current Rating: | 30A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
