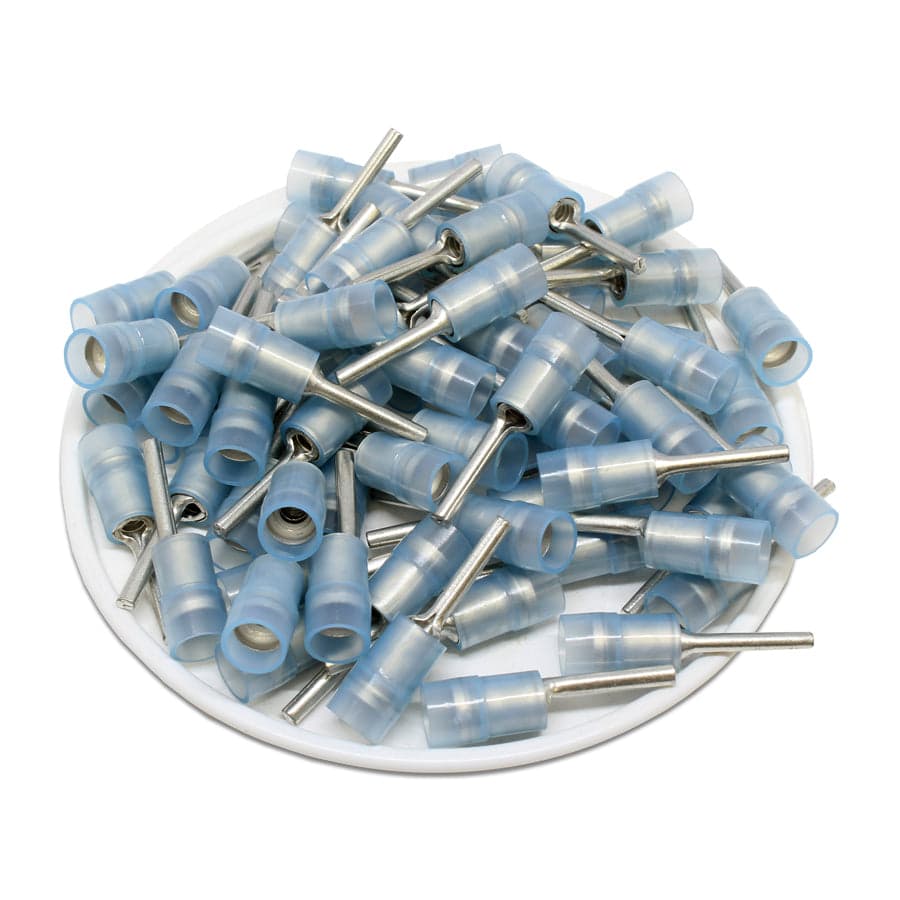

PTNYD2-13 - Nylon Insulated Pin Terminals - 16-14 AWG - Double Crimp—
$15.85
The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| T: | 0.8mm (0.031") |
| L: | 23.8mm (0.94") |
| F: | 13mm (0.51") |
| E: | 11mm (0.43") |
| W: | 1.9mm (0.075") |
| D | 5.2mm (0.21") |
| D1: | 2.3mm (0.091") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
