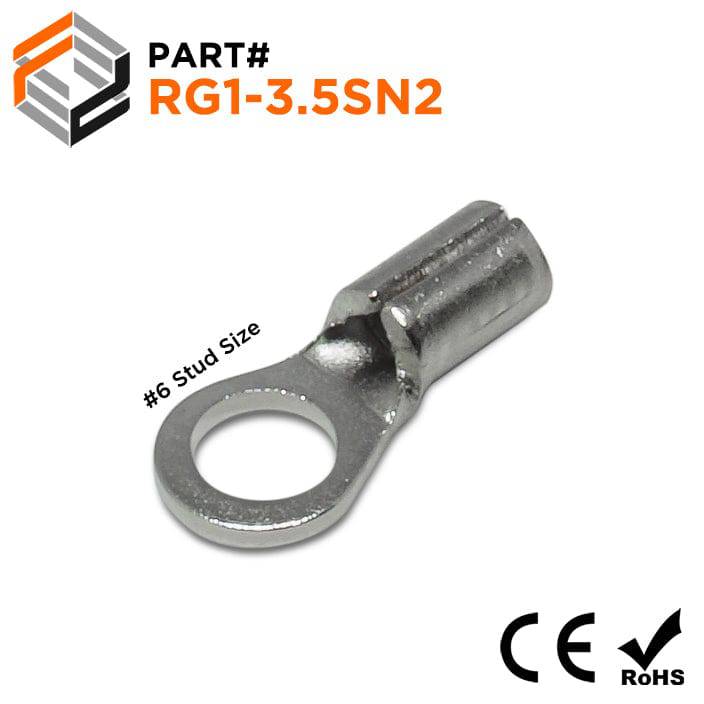

RG1-3.5SN2 - 22 to 16 AWG High Temperature Ring Terminals, #6 Stud, Steel, 900°F, 100 Pieces—
$4.95
The Story
HIGH TEMPERATURE RING TERMINALS
Our High Temperature Ring Terminals are made of heat-resistant materials and designed for installation in high-temperature applications such as motors, ovens, and furnaces. These are mountable on a threaded post or stud for a more secure connection compared to other terminals such as the spade or hook varieties. They are non-insulated, so you can easily inspect the wire connection.
FEATURES & SPECIFICATIONS:
| Wire Range: | 22 to 16 AWG |
| Stud Size: | #6 Stud |
| T: | 0.8mm (0.03") |
| L: | 11.7mm (0.460") |
| F: | 4.0mm (0.157") |
| E: | 5.0mm (0.196") |
| W: | 5.5mm (0.216") |
| D: | 3.4mm (0.133") |
| D1: | 1.6mm (0.062") |
| D2: | 3.7mm (0.145") |
| Terminal Material: | Steel |
| Surface Treatment: | Nickel Plated |
| Temperature Rating: | 900°F (482°C) |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Click below to check out our YouTube channel!
