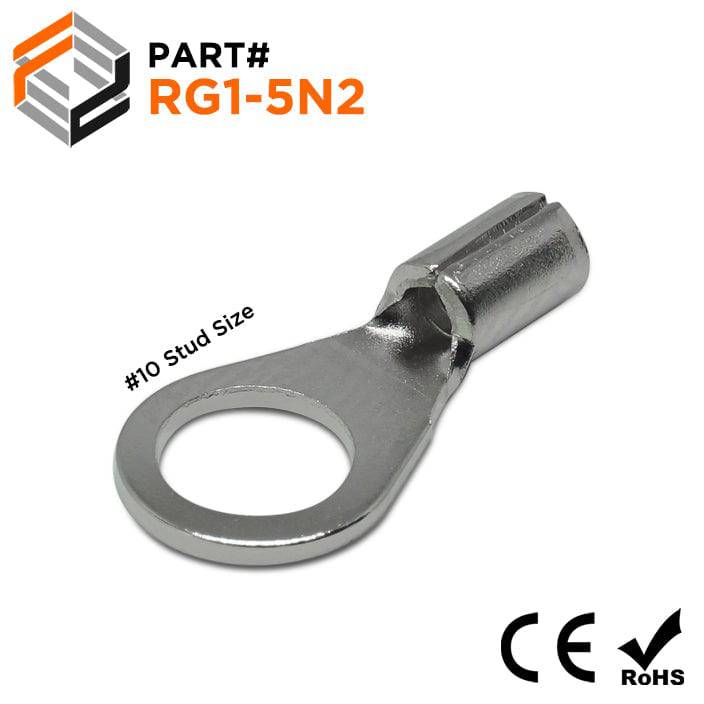

RG1-5N2 - 22 to 16 AWG High Temperature Ring Terminals, #10 Stud, Steel, 900°F, 100 Pieces—
$5.88
The Story
HIGH TEMPERATURE RING TERMINALS
Our High Temperature Ring Terminals are made of heat-resistant materials and designed for installation in high-temperature applications such as motors, ovens, and furnaces. These are mountable on a threaded post or stud for a more secure connection compared to other terminals such as the spade or hook varieties. They are non-insulated, so you can easily inspect the wire connection.
FEATURES & SPECIFICATIONS:
| Wire Range: | 22 to 16 AWG |
| Stud Size: | #10 Stud |
| T: | 0.8mm (0.03") |
| L: | 16.0mm (0.629") |
| F: | 7.0mm (0.275") |
| E: | 5.0mm (0.196") |
| W: | 8.0mm (0.314") |
| D: | 3.4mm (0.133") |
| D1: | 1.6mm (0.062") |
| D2: | 5.3mm (0.208") |
| Terminal Material: | Steel |
| Surface Treatment: | Nickel Plated |
| Temperature Rating: | 900°F (482°C) |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
PRODUCT DRAWING:
