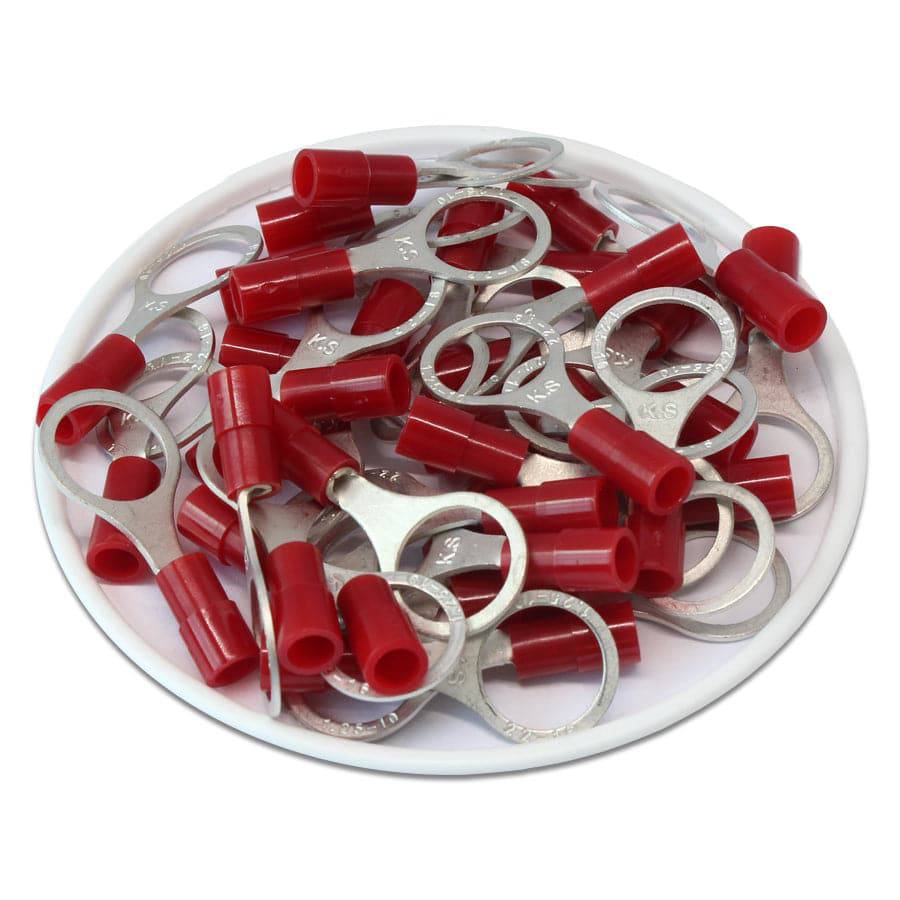

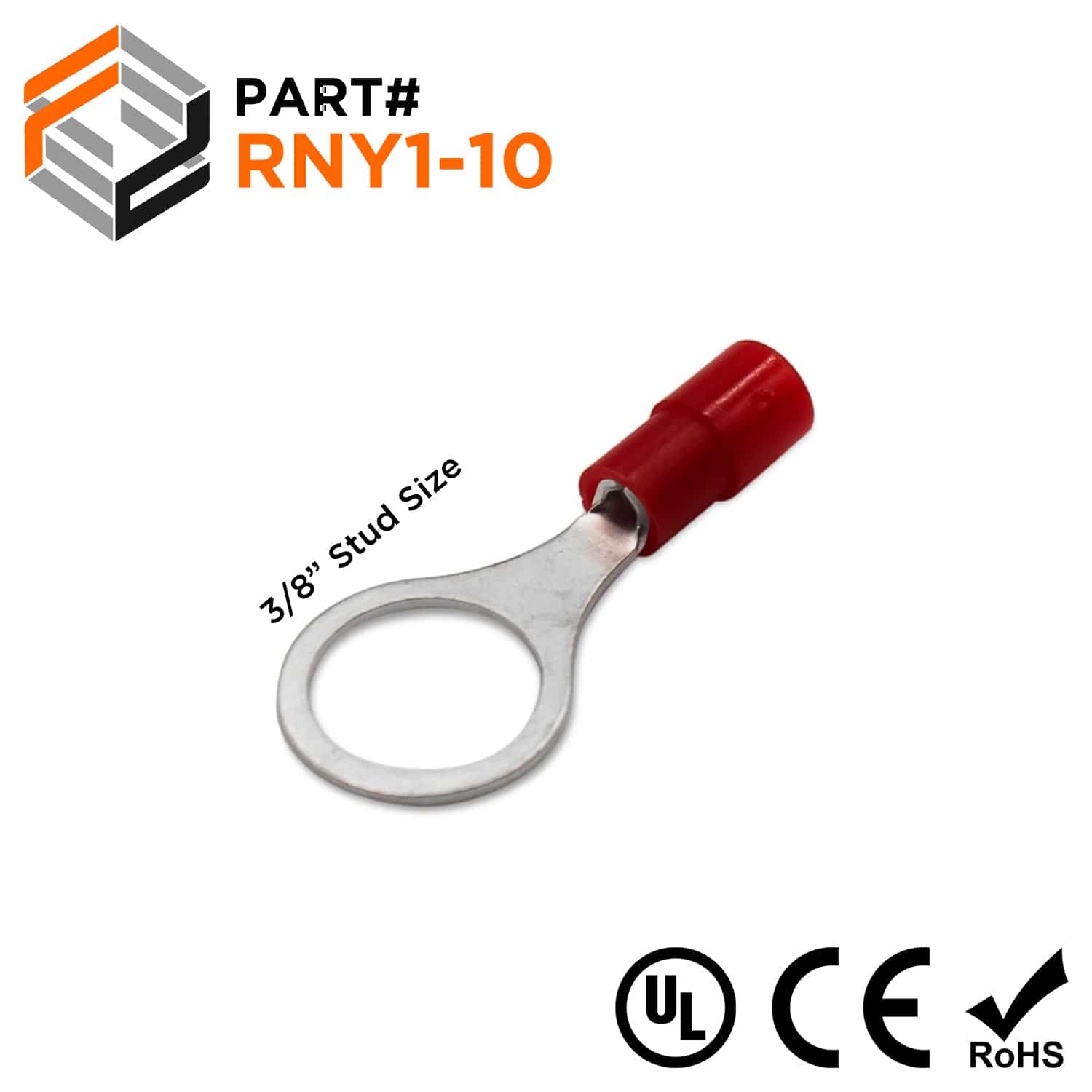

NYLON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.Ā
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| T: | 0.75mm (0.03") |
| L: | 31.5mm (1.24") |
| F: | 13.9mm (0.55") |
| E: | 11mm (0.43") |
| W: | 13.6mm (0.54") |
| D | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2: | 10.5mm (0.41") |
| Wire Range: | 22-16 AWG |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| Stud Size: | 3/8" |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Ā
Technical Drawing:
Cross References
Cross References:
3M: MNG18-38RK
Cembre: RKY-M 10
Elecdirect: R6A38
McMaster-Carr: 7113K734
Panduit: PN18-38R-C
Thomas Betts: RA18-38
Tyco AMP: 320573
Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
