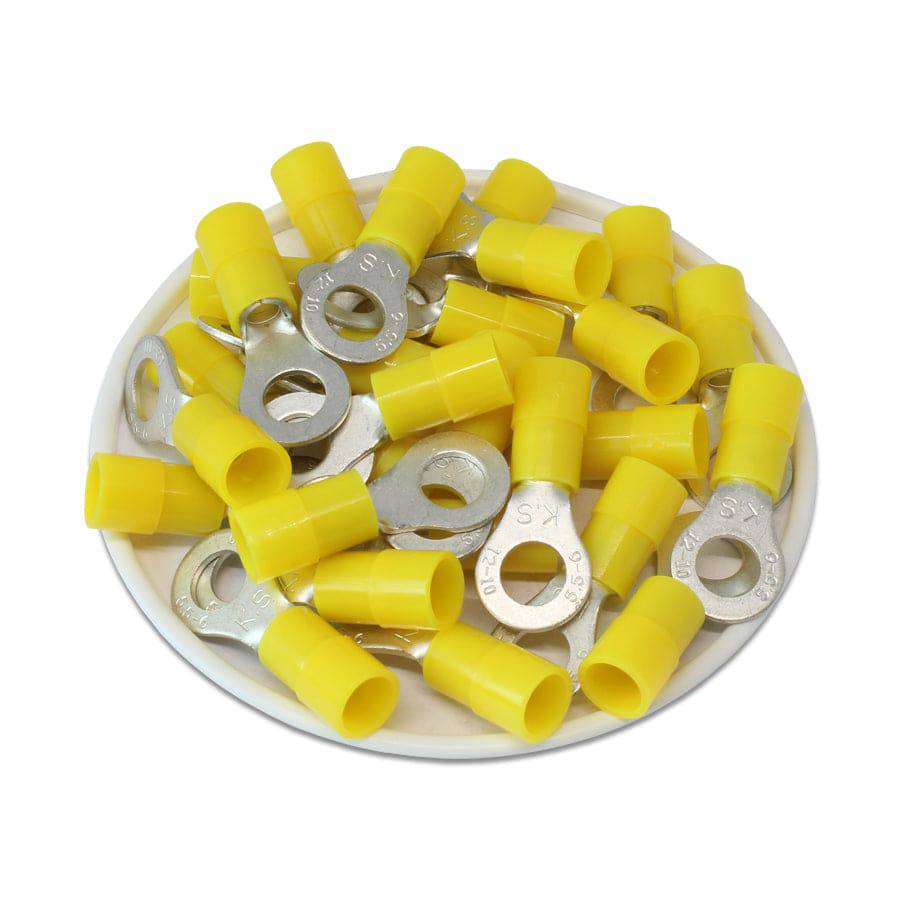

NYLON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| T: | 1mm (0.04") |
| L: | 34mm (1.34") |
| F: | 13.3mm (0.51") |
| E: | 13mm (0.51") |
| W: | 15mm (0.59") |
| D | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 8.4mm (0.33") |
| Wire Range: | 12-10 AWG |
| Stud Size: | 5/16" |
| Color: | Yellow |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:
3M: MNG10-516R/SK
Cembre: GKY-M 8
Elecdirect: R6C56
Panduit: PN10-516R-L
Thomas Betts: RC10-516
