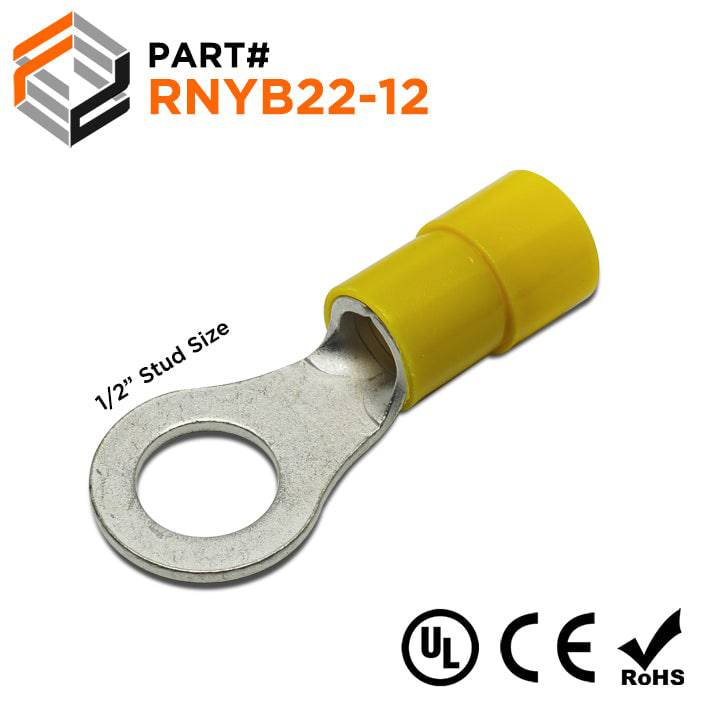

RNYB22-12 - 4 AWG Nylon Insulated Ring Terminals, 1/2" Stud, 10 Pieces
HomeStore

RNYB22-12 - 4 AWG Nylon Insulated Ring Terminals, 1/2" Stud, 10 Pieces

RNYB22-12 - 4 AWG Nylon Insulated Ring Terminals, 1/2" Stud, 10 Pieces

$3.55

Original: $11.84

-70%
RNYB22-12 - 4 AWG Nylon Insulated Ring Terminals, 1/2" Stud, 10 Pieces—

$11.84

$3.55

The Story

Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 4 AWG
Stud Size: 1/2" Stud
Color: Yellow
T: 1.7mm (0.067")
L: 54.5mm (2.146")
F: 19.7mm (0.776")
E: 24.0mm (0.945")
W: 22.0mm (0.866")
D 13.0mm (0.512")
D1: 7.7mm (0.303")
D2: 13.0mm (0.511")
Terminal Material: Tin-Plated Copper
Insulation Material: Nylon
Max Electrical Rating: 600 Volts (105°C)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
