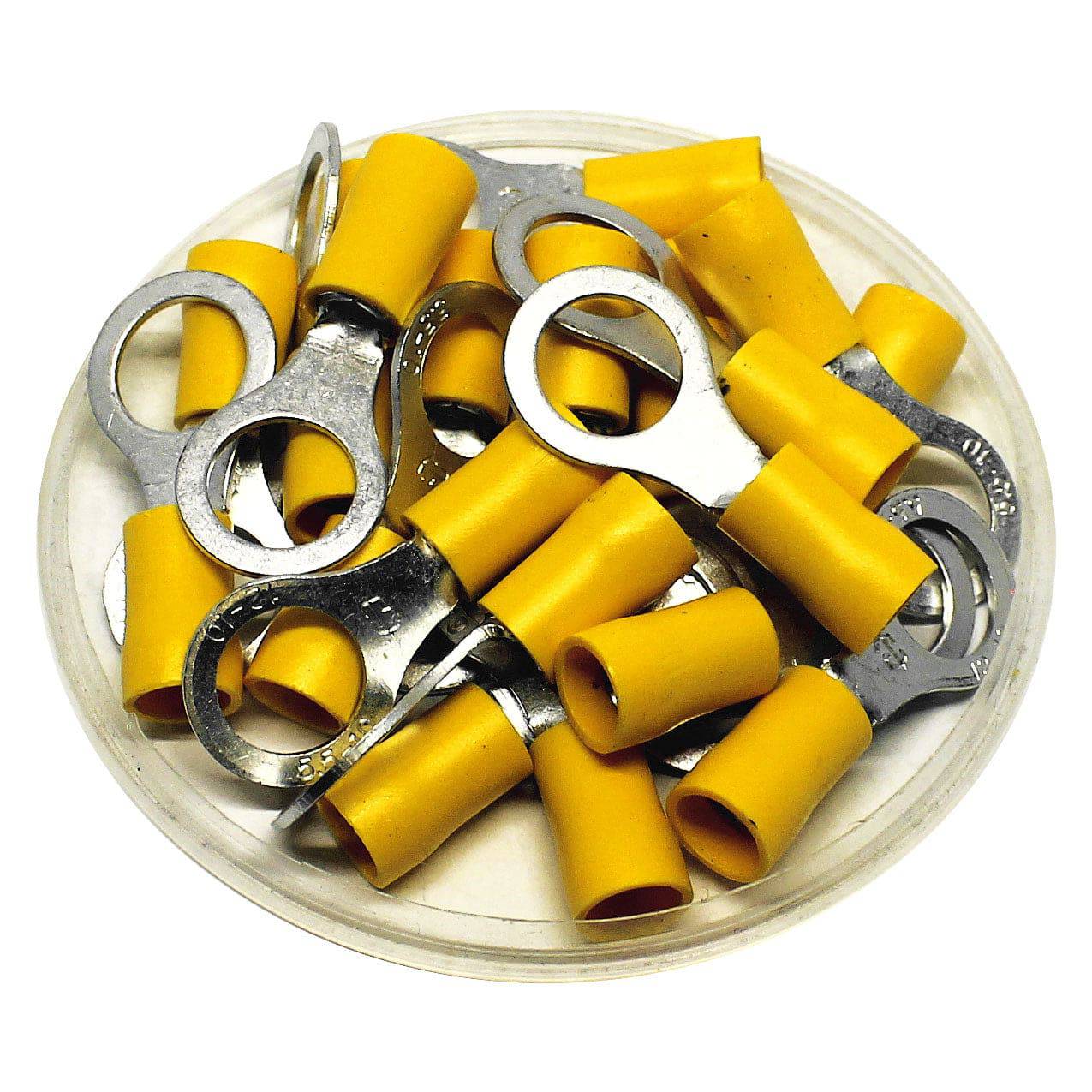

VINYL (PVC) INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| T: | 1mm (0.04") |
| L: | 34mm (1.34") |
| F: | 13.3mm (0.52") |
| E: | 13mm (0.51") |
| W: | 15mm (0.59") |
| D | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 10.5mm (0.41") |
| Stud Size: | 3/8" |
| Color: | Yellow |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:3M: MVU10-38RX
Burndy: TP10-38
Cembre: YVF-R 38
Elecdirect: R4C38
McMaster-Carr: 7113K32
Panduit: PV10-38R-L
Tyco AMP: 34173
Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
