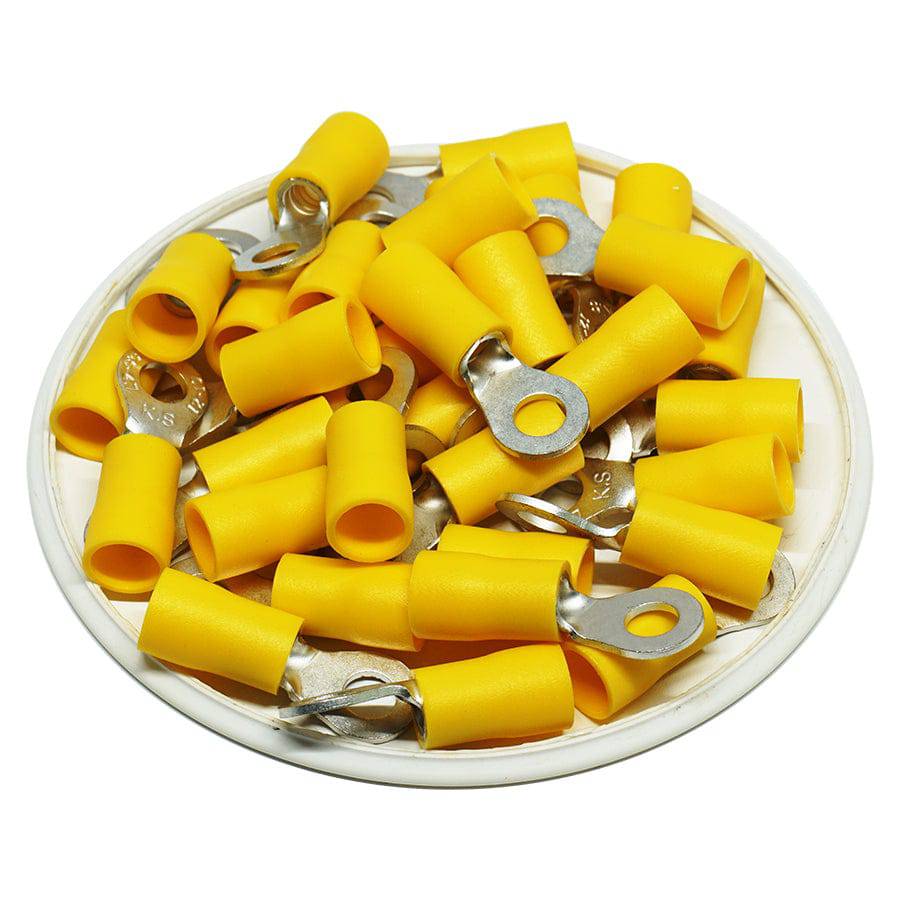

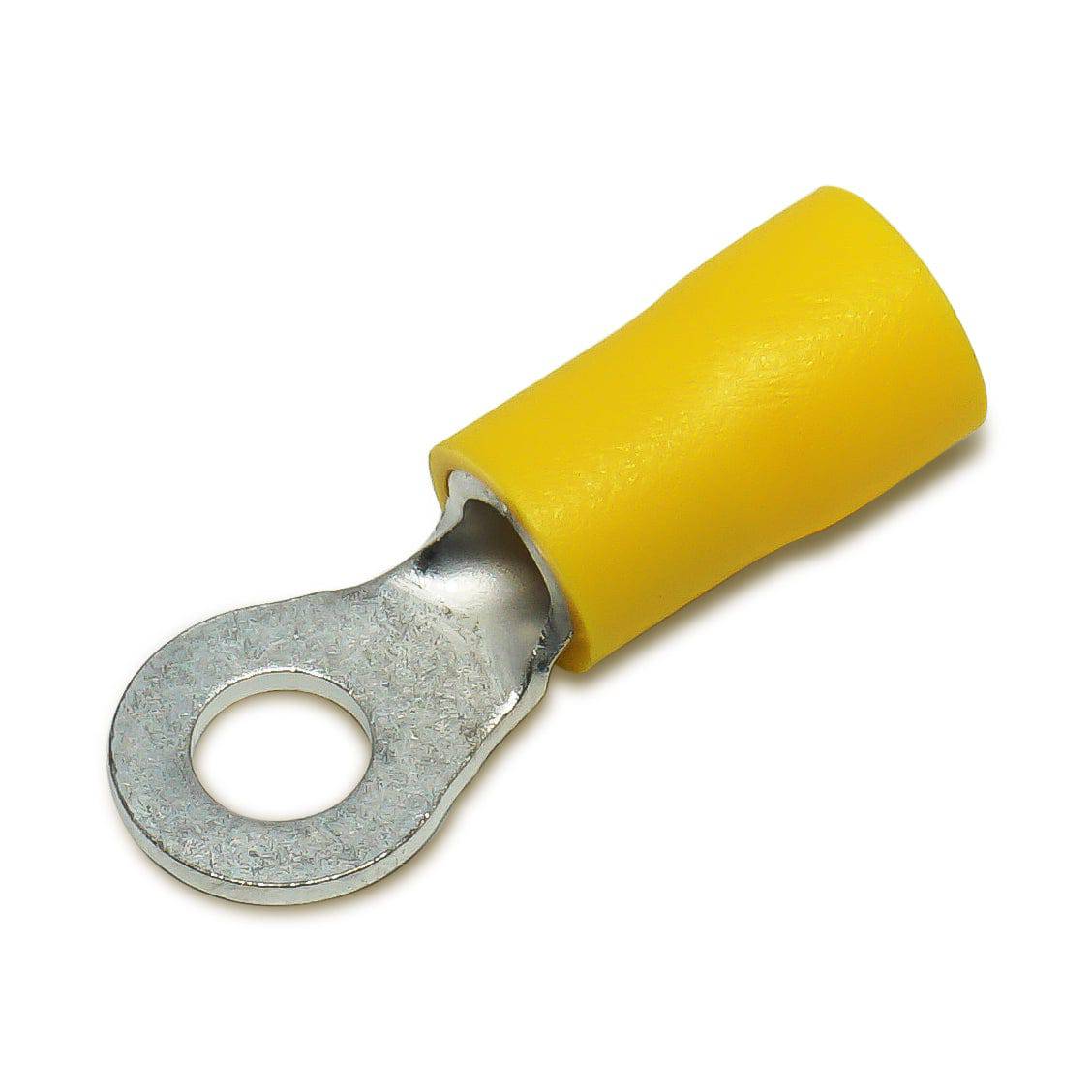

-70%RVB5-47 - 12 to 10 AWG Vinyl PVC Insulated Ring Terminals, #8 Stud, 50 Pieces—
$11.48
$3.44The Story
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #8 |
| Color: | Yellow |
| T: | 1.0mm (0.04") |
| L: | 26.6mm (1.047") |
| F: | 9.05mm (0.356") |
| E: | 13mm (0.512") |
| W: | 9.5mm (0.374") |
| D | 6.4mm (0.252") |
| D1: | 3.4mm (0.134") |
| D2: | 4.7mm (0.185") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105°C) |
| Seam: | Brazed |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
