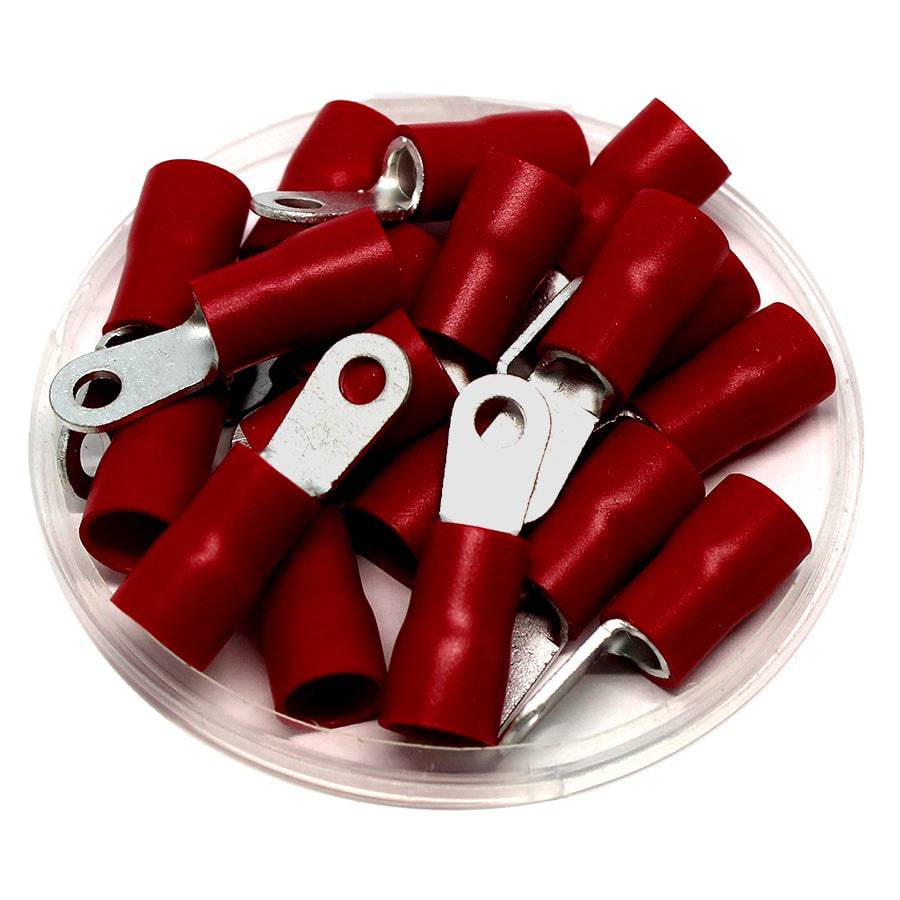

-70%RVBM8-4 - Vinyl Insulated Ring Terminal - 8 AWG - Brazed Seam - Stud #8ā
$18.52
$5.56The Story
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.
Dimensions & Features:
| T: | 1.2mm (0.05") |
| L: | 32mm (1.3") |
| F: | 10.4mm (0.41") |
| E: | 17.5mm (0.69") |
| W: | 8.8mm (0.36") |
| D | 8mm (0.31") |
| D1: | 4.5mm (0.18") |
| D2: | 4.3mm (0.17") |
| Stud Size: | #8 |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Brazed |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Ā
Technical Drawing:
Cross References
Cross References:Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
Description
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.
