INSULATED WIRE FERRULES - REEL/SPOOL
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
These ferrules come in a continuous reel of 4,000 pieces. The reel is made of corrugated cardboard with a plastic spindle that is universally accepted on a wide variety automatic crimping machines.
DIMENSIONS & FEATURES:
| Wire Size: | 16 AWG |
| Color: | Red |
| Pin Length: | 8mm (0.31") |
| Material: | Tin Plated Copper & Polypropylene |
| L1: | 14.5mm (0.57") |
| L2: | 8.0mm (0.31") |
| D: | 2mm (0.07") |
| D1: | 1.7mm (0.06") |
| D2: | 3.5mm (0.13") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Temperature Rating: | 221°F (105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 18 AMP |

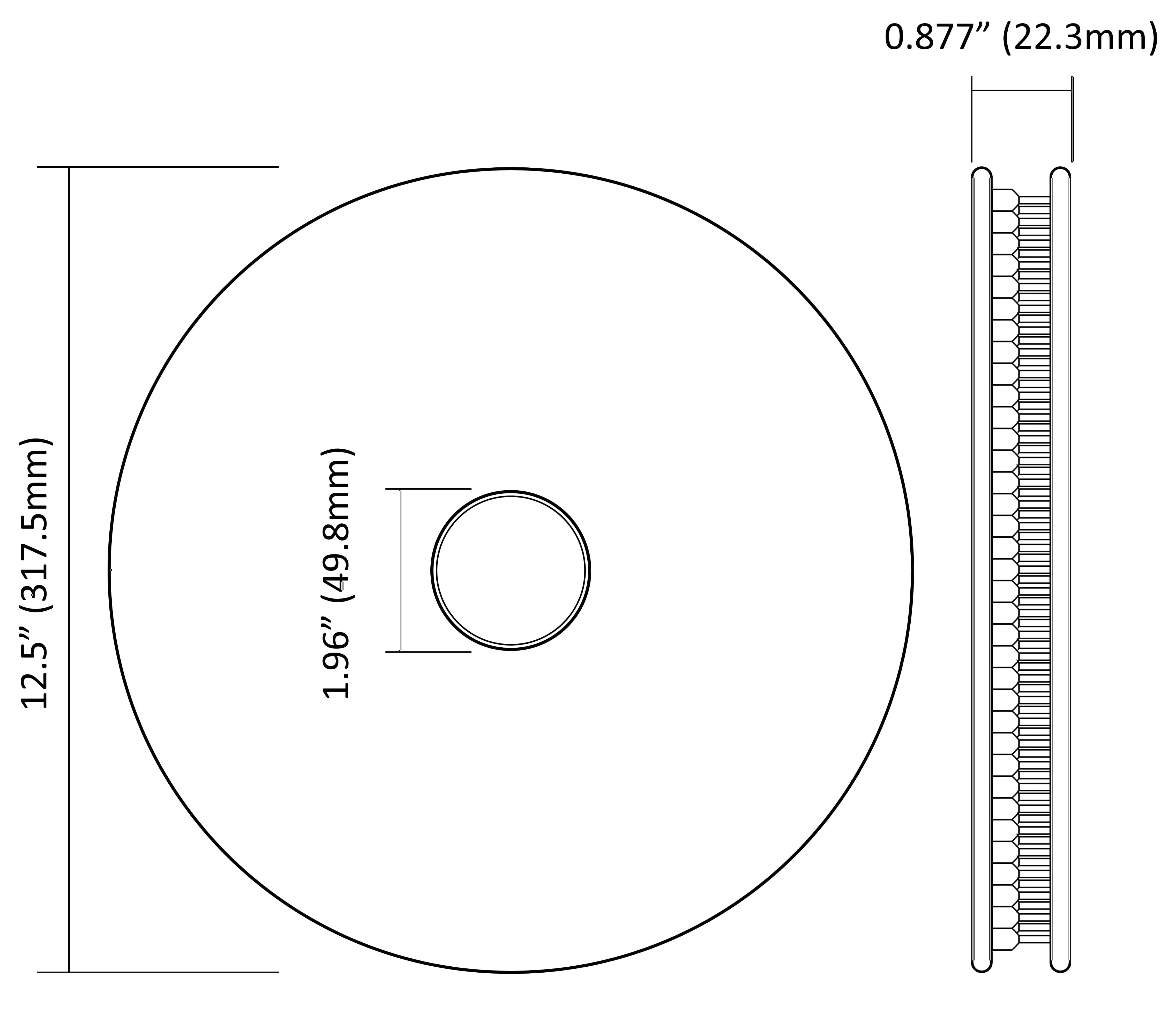

DRAWING:
Cross References
Cross Reference Parts:
ABB:Â 30446107
ACI:Â 107664
Altech Corp:Â 2848.0 2208.0 FID1210
American Electrical:Â 11101040 11102040
AUTOMATION DIRECT:Â BM-00508
Eclipse:Â 701-036
Elecdirect:Â FER-12-10D
Greenlee:Â 174/GR
McMaster-Carr:Â 7950K69 7950K31
Panduit:Â FSD81-10-D
Phoenix Contact:Â 3200535
SPC Technology:Â SPC4523 84N2057
TE Connectivity:Â 1-966067-9
Thomas Betts:Â F2038
Tyco AMP:Â 3-966 066-0
WAGO:Â 216-207
Weidmuller:Â 9026010000 9019190000
Wieland:Â 06.600.2727.0
ZF:Â V3AE0055
