$7.84

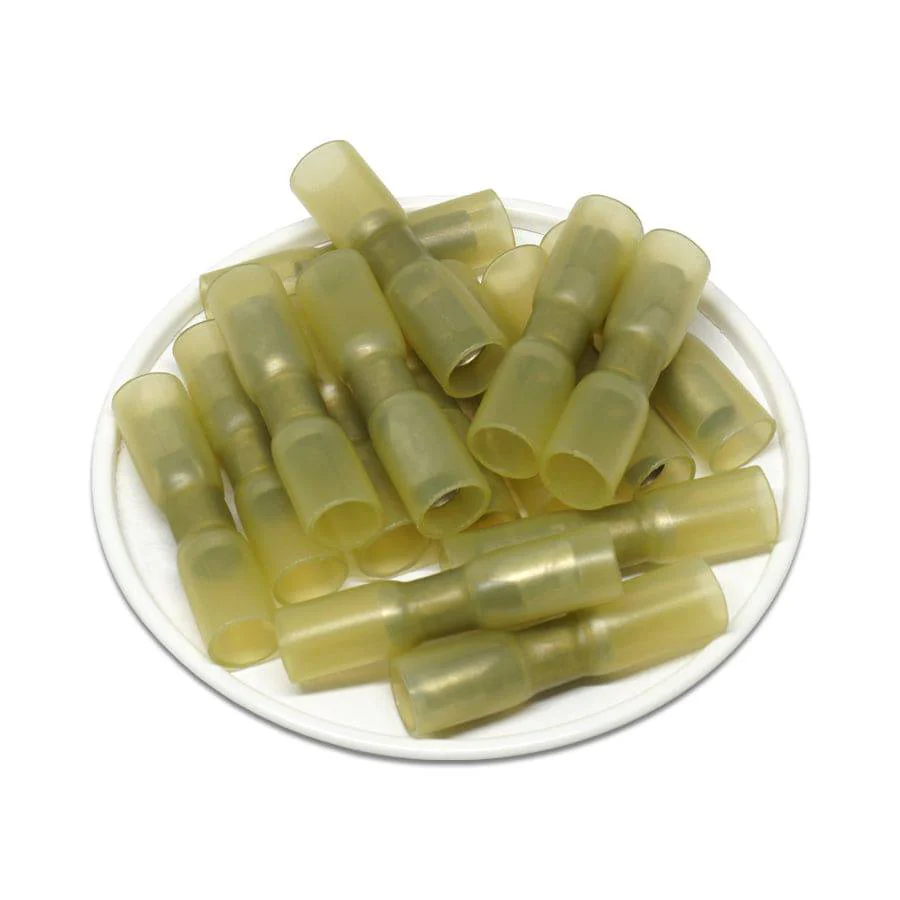

SBTF102-4 - 12 to 10 AWG Heat Shrink Bullet Connectors, Female, Size: 0.16", Polyethylene, Yellow, 25 Pieces—
$7.84
The Story
HEAT SHRINK BULLET CONNECTORS
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
DIMENSIONS & FEATURES:
| Wire Range: | 12 to 10 AWG (4.00mm2 to 6.00mm2) |
| W: | 0.16" (4.0mm) |
| F: | 0.43" (11.0mm) |
| L: | 1.40" (35.6mm) |
| B: | 0.79" (20.0mm) |
| C: | 0.13" (3.4mm) |
| D: | 0.27" (6.8mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyethylene |
| Color: | Yellow |
| Temperature Rating: | -131oF to 257oF (-55oC to 125oC) |
PRODUCT DRAWING:
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
HEAT SHRINK BULLET CONNECTORS
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
DIMENSIONS & FEATURES:
| Wire Range: | 12 to 10 AWG (4.00mm2 to 6.00mm2) |
| W: | 0.16" (4.0mm) |
| F: | 0.43" (11.0mm) |
| L: | 1.40" (35.6mm) |
| B: | 0.79" (20.0mm) |
| C: | 0.13" (3.4mm) |
| D: | 0.27" (6.8mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyethylene |
| Color: | Yellow |
| Temperature Rating: | -131oF to 257oF (-55oC to 125oC) |
PRODUCT DRAWING:
