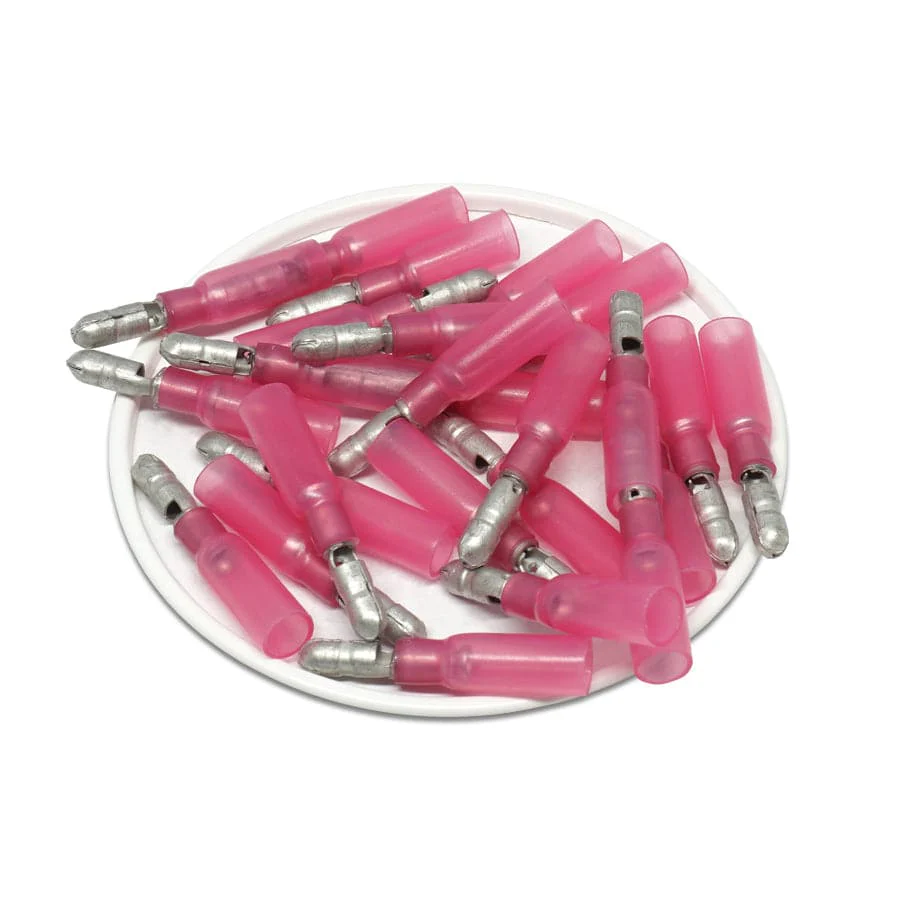

SBTM100-4 - Polyethylene Heat Shrink Male Bullet - 4mm - 22-18 AWG - Red—
$6.76
The Story
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
| Wire Range: | 22-16 AWG |
| D: | 0.19" (4.8mm) |
| D1: | 0.06" (1.6mm) |
| B: | 0.16" (4.0mm) |
| E: | 0.87" (21.0mm) |
| L: | 1.22" (31.0mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyethylene |
| Color: | Red |
| Temperature Rating: | -55oC to 125oC |
Product Drawing:
