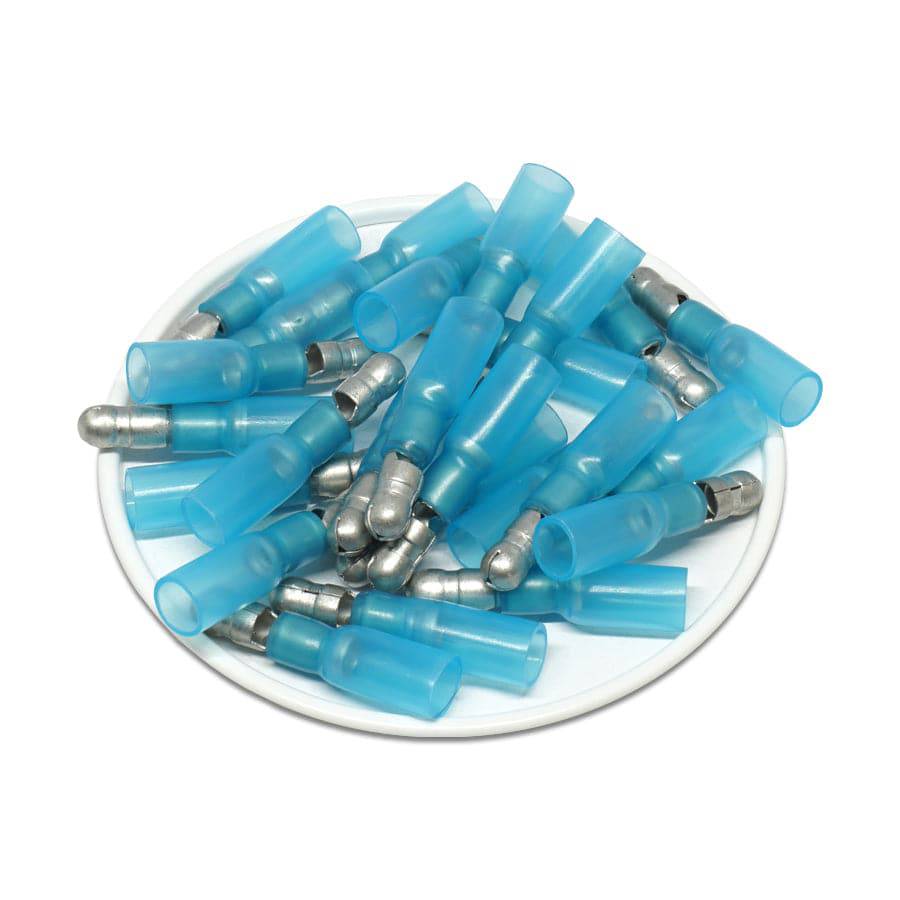

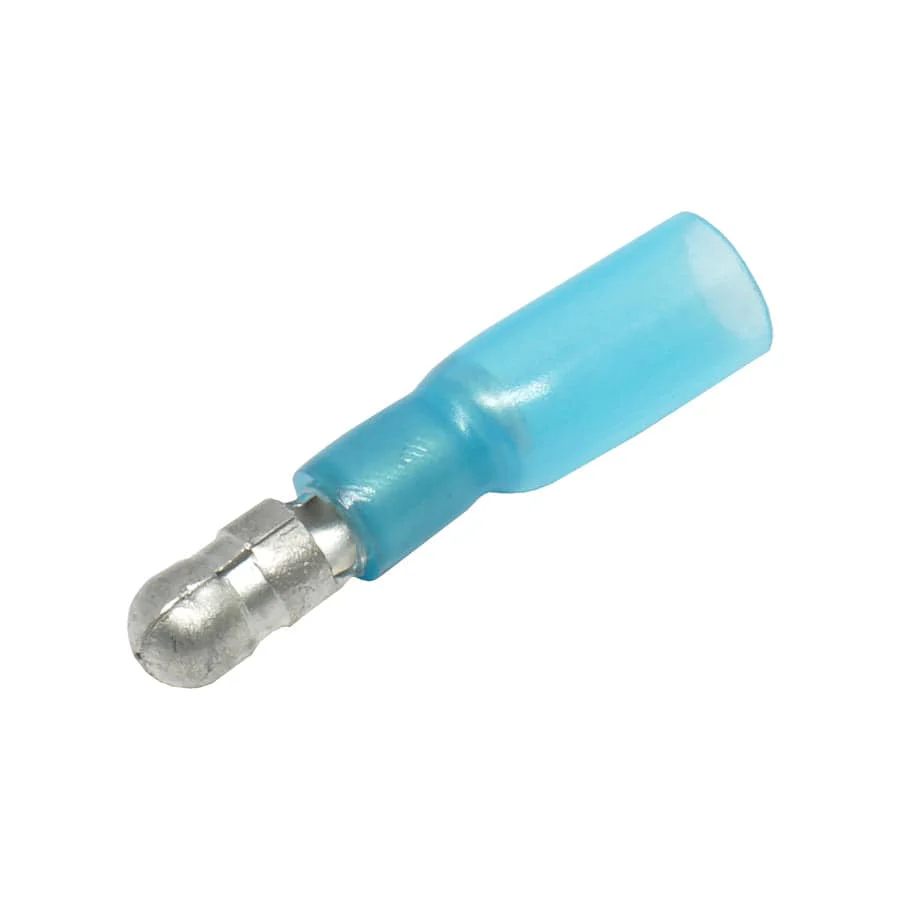

SBTM101-5 - Polyethylene Heat Shrink Male Bullet - 5mm - 16-14 AWG - Blue—
$7.59
The Story
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Product Drawing:
None:
| Wire Range: | 16-14 AWG |
| D: | 0.23" (5.8mm) |
| D1: | 0.09" (2.2mm) |
| B: | 0.20" (5.0mm) |
| E: | 0.83" (21.0mm) |
| L: | 1.22" (31.0mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polythylene |
| Color: | Blue |
| Temperature Rating: | -55oC to 125oC |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
