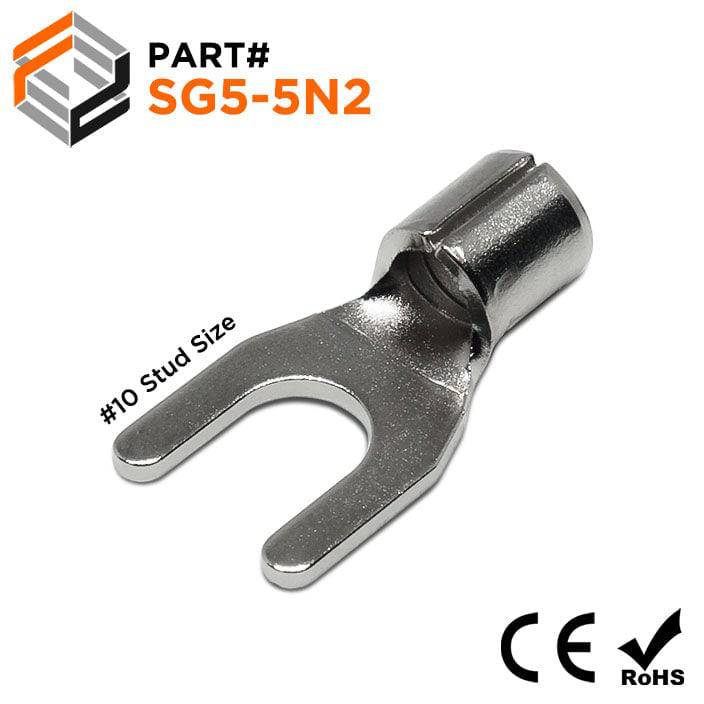

-70%SG5-5N2 - 12 to 10 AWG High Temperature Spade Terminals, 10# Stud, Steel, 900°F, 100 Pieces—
$11.84
$3.55The Story
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 12-10 AWG |
| Stud Size: | #10 Stud |
| T: | 0.8mm (0.031") |
| L: | 18.7mm (0.736") |
| F: | 7.5mm (0.295") |
| E: | 6.0mm (0.236") |
| W: | 9.5mm (0.374") |
| D: | 5.6mm (0.220") |
| D1: | 3.4mm (0.134") |
| D2: | 5.3mm (0.208") |
| Terminal Material: | Stainless Steel |
| Surface Treatment: | Nickel Plated |
| Temperature Rating: | 482°C - 600 Volts |
| Max Electrical Rating: | 50 AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
