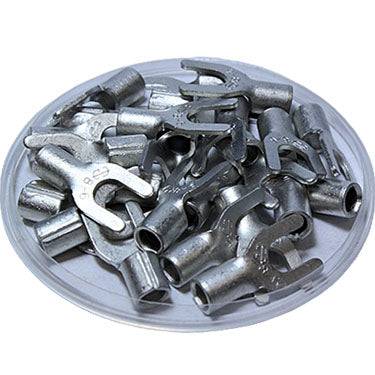

SNB8-8 - 8 AWG Non Insulated Spade Terminals, 5/16" Stud, 50 Pieces—
$13.57
The Story
Vinyl insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 5/16" |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Current: | 70AMP |
T: | 1.2mm (0.04") |
| L: | 28.0mm (1.10)") |
| F: | 8.3mm (0.32") |
| E: | 8.5mm (0.33") |
| W: | 14.5mm (0.57") |
| D: | 7.2mm (0.28") |
| D1: | 4.5mm (0.17") |
| D2: | 8.4mm (0.33") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Vinyl insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
