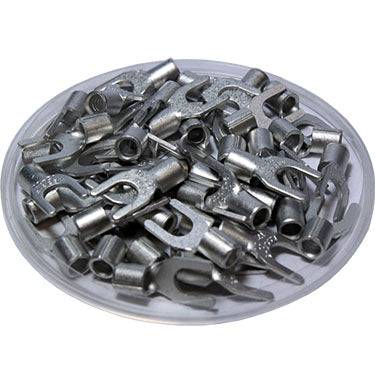

-70%SNBLL1-37 - 22 to 16 AWG Non Insulated Spade Terminals, #6 Stud, UL Approved, 100 Pieces—
$6.83
$2.05The Story
NON INSULATED SPADE TERMINALS
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Seam: | Brazed |
| Stud Size: | #6 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Current: | 18AMP |
| T: | 0.75mm (0.03") |
| L: | 16.0mm (0.63)") |
| F: | 6.5mm (0.26") |
| E: | 4.8mm (0.19") |
| W: | 7.2mm (0.28") |
| D: | 3.4mm (0.13") |
| D1: | 1.7mm (0.07") |
| D2: | 3.7mm (0.15") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
