-70%22-16 AWG Non Insulated Spade Terminals, #8 Stud, UL Approved, 100 Pieces - SNBS1-4—
$7.02
$2.11The Story
NON INSULATED SPADE TERMINALS

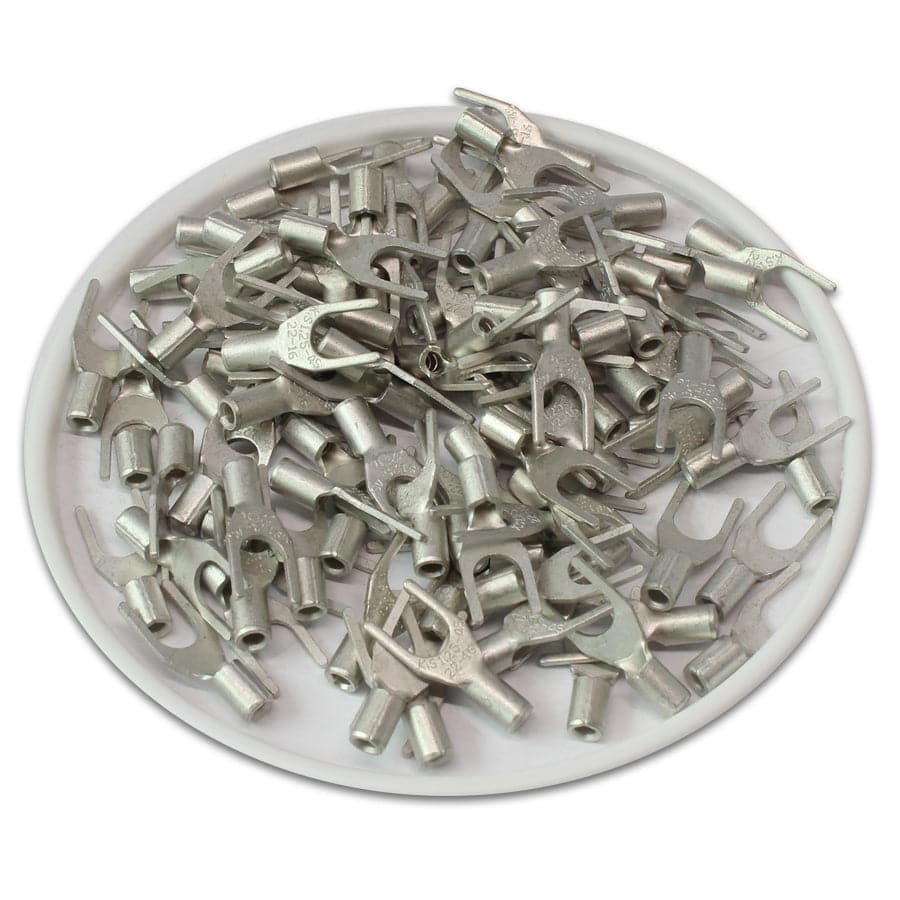

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #8 Stud |
| T: | 0.75mm (0.03") |
| L: | 16mm (0.63") |
| F: | 6.5mm (0.26") |
| E: | 4.8mm (0.19") |
| W: | 6.4mm (0.25") |
| D: | 3.4mm (0.13") |
| D1: | 1.7mm (0.07") |
| D2: | 4.3mm (0.17") |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Amp Rating: | 18A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
