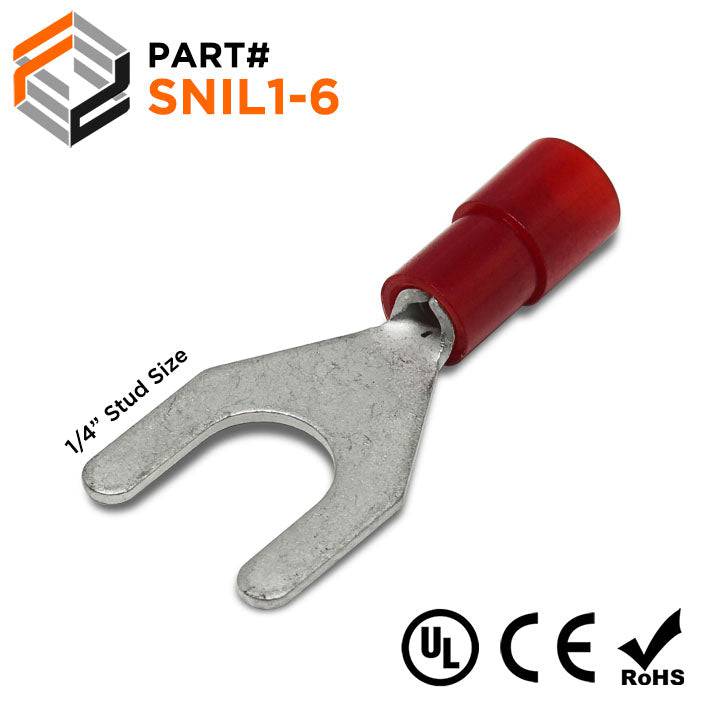

-70%SNIL1-6 - 22 to 16 AWG Polycarbonate Spade Terminals, 1/4" Stud, 100 Pieces—
$17.69
$5.31The Story
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. Color coded according to industry standards.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16Â AWG |
| Stud Size: | 1/4"Â Stud |
| Color: | Red |
| T: | 0.80mm (0.031") |
| L: | 28.0mm (1.102") |
| F: | 11.0mm (0.433") |
| E: | 11.0mm (0.433") |
| W: | 12.0mm (0.472") |
| D: | 4.0mm (0.157") |
| D1: | 1.7mm (0.067") |
| D2: | 6.4mm (0.252") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polycarbonate |
| Max Electrical Rating: | 600 Volts (105°C) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
