-70%SNIS1-5 - 22 to 16 AWG Polycarbonate Spade Terminals, #10 Stud, 100 Pieces—
$10.71
$3.21The Story

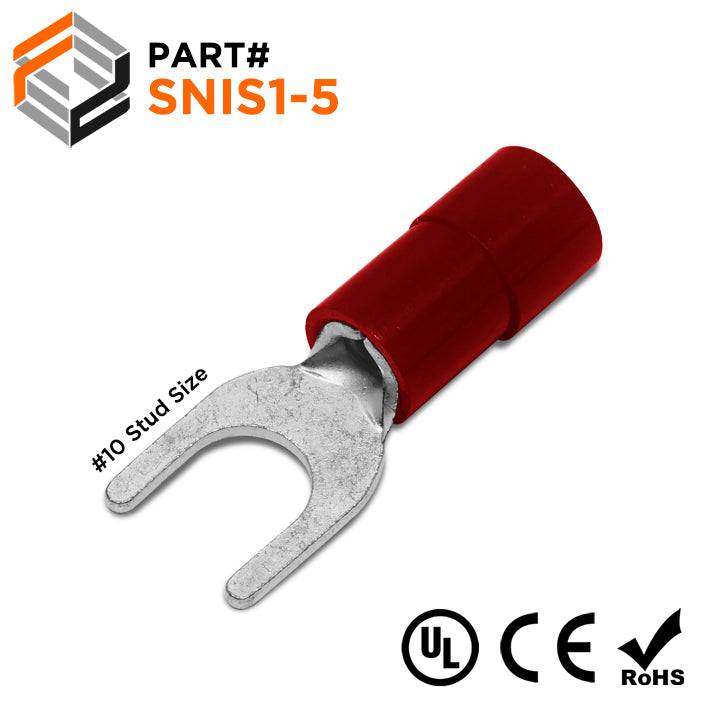

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. Color coded according to industry standards.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16Â AWG |
| Stud Size: | #10 Stud |
| Color: | Red |
| T: | 0.75mm (0.030") |
| L: | 22.0mm (0.866") |
| F: | 6.5mm (0.256") |
| E: | 11.0mm (0.433") |
| W: | 8.1mm (0.319") |
| D: | 4.0mm (0.157") |
| D1: | 1.7mm (0.067") |
| D2: | 5.3mm (0.209") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polycarbonate |
| Max Electrical Rating: | 600 Volts (105°C) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
