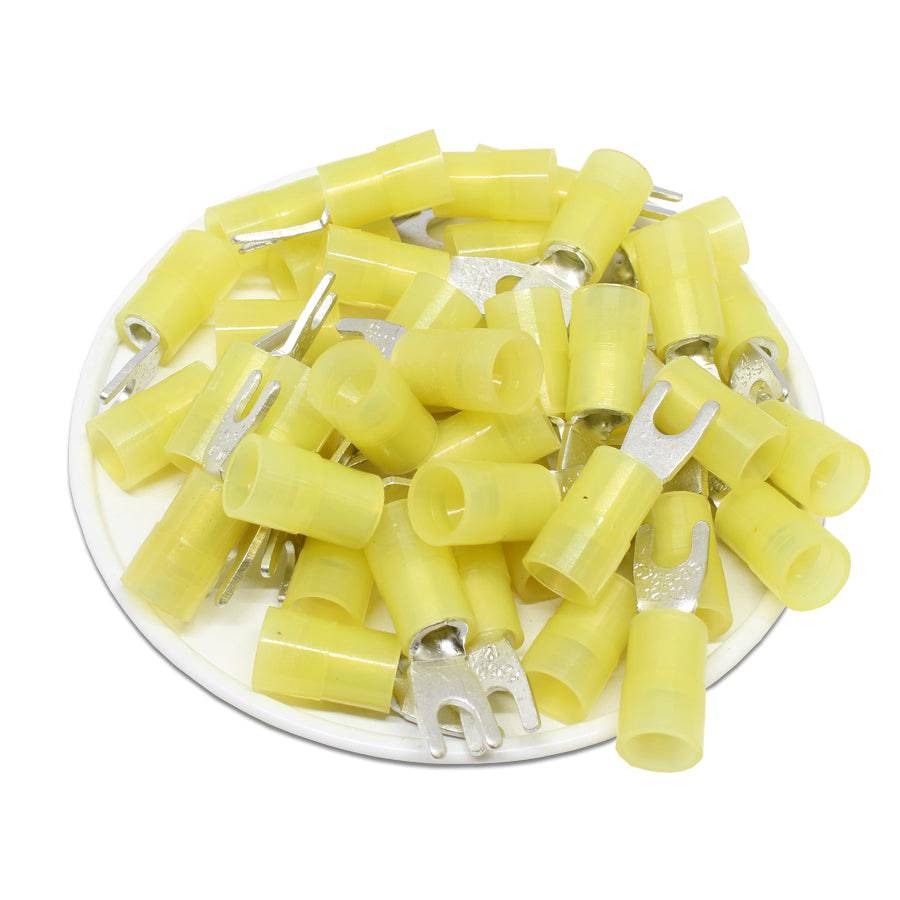

-70%SNYB5-3.7 - Nylon Insulated Spade Terminal - 12-10AWG - 50/pack—
$5.81
$1.74The Story
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
Cembre: GKY-U3.5
McMaster-Carr: 69145K329
Tyco AMP: 326859
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Voltage Rating: | 600 Volts |
| Stud Size: | #6 |
| T: | 1.0mm (0.04") |
| L: | 25.5mm (1.00") |
| F: | 7.0mm (0.28") |
| E: | 13.0mm (0.51") |
| W: | 8.3mm (0.33") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 3.7mm (0.15") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Cembre: GKY-U3.5
McMaster-Carr: 69145K329
Tyco AMP: 326859
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
