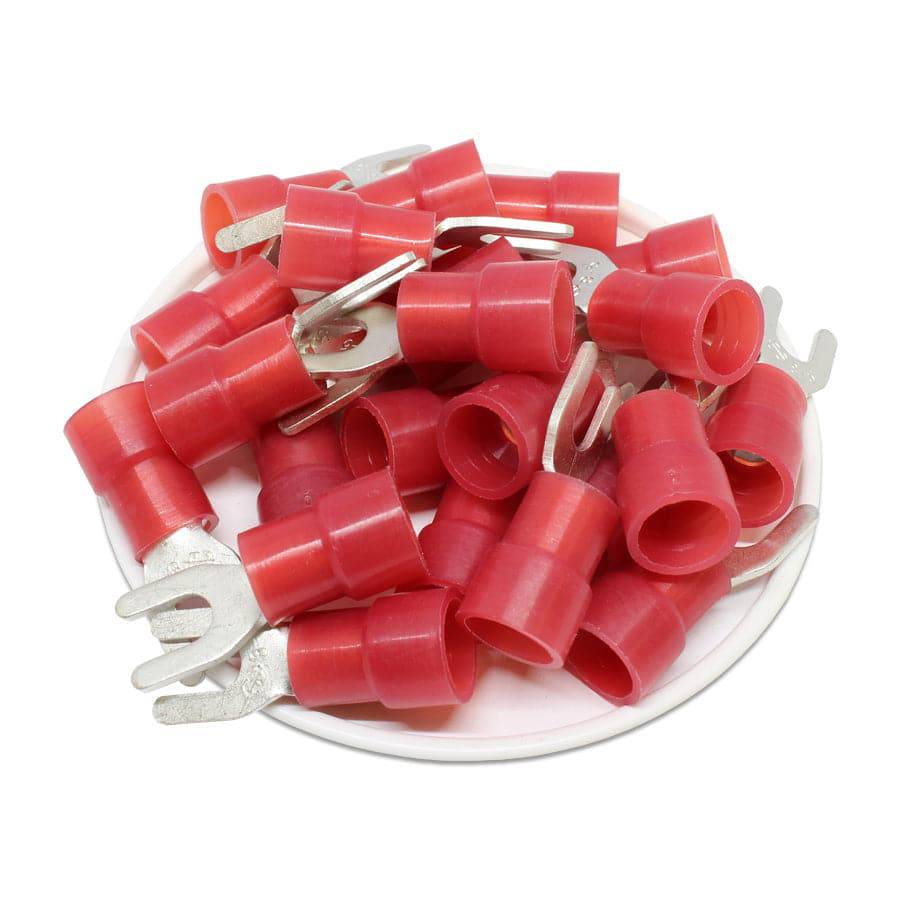

SNYB8-5 - 8 AWG Nylon Insulated Spade Terminals, #10 Stud, Red, 50 Pieces
HomeStore

SNYB8-5 - 8 AWG Nylon Insulated Spade Terminals, #10 Stud, Red, 50 Pieces

SNYB8-5 - 8 AWG Nylon Insulated Spade Terminals, #10 Stud, Red, 50 Pieces

$14.80
SNYB8-5 - 8 AWG Nylon Insulated Spade Terminals, #10 Stud, Red, 50 Pieces—
$14.80

The Story

Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2

Dimensions & Features:

Wire Size: 8 AWG
Stud Size: #10
Color: Red
Insulation Material: Nylon
Terminal Material: Tin-Plated Copper
Temperature Rating: 105oC
Voltage Rating: 600 Volts
T: 1.2mm (0.05")
L: 28.3mm (1.11")
F: 8.1mm (0.32")
E: 16.0mm (0.63")
W: 10.5mm (0.41")
D: 8.0mm (0.32")
D1: 4.5mm (0.18")
D2: 5.3mm (0.21")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Technical Drawing

Click to view product spec sheet:

Videos

Check out our YouTube channel!
