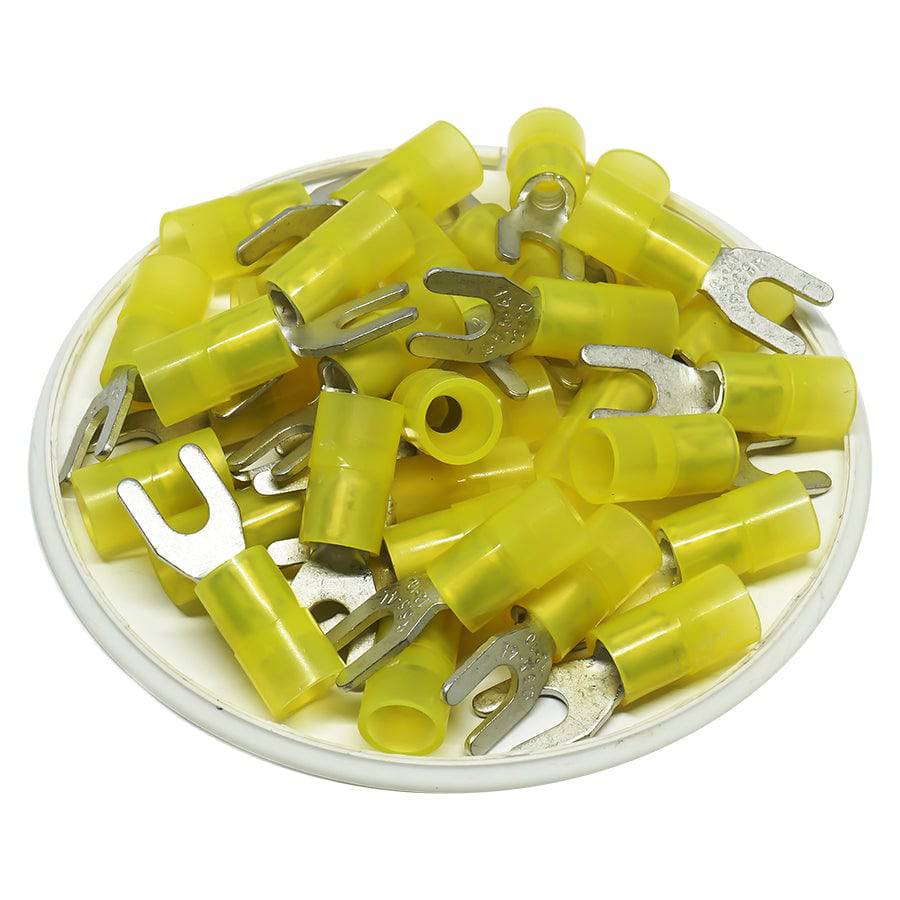

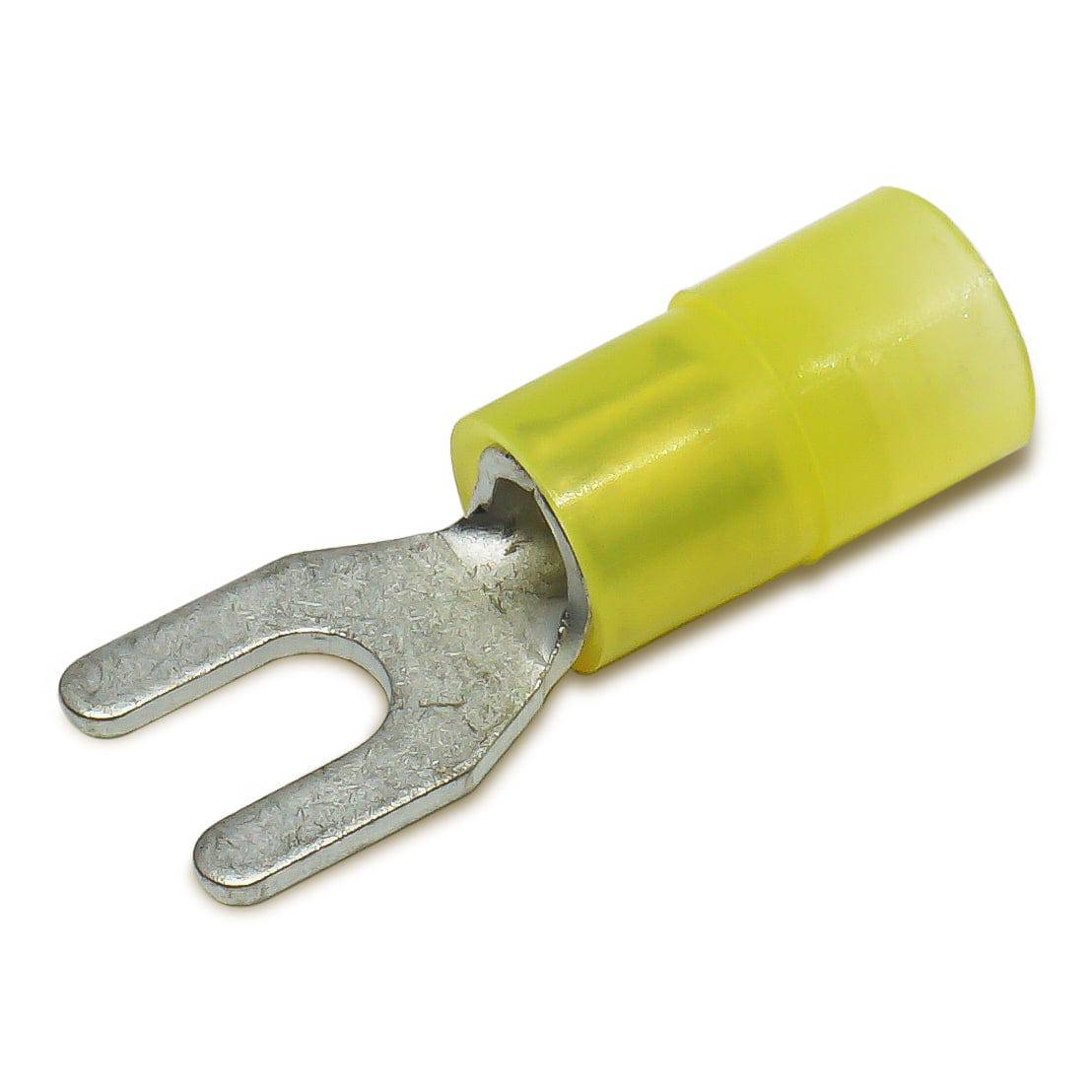

-70%SNYBL5-4 - Nylon Insulated Spade Terminal - 12-10 AWG - #8 Stud - Yellow—
$7.38
$2.21The Story
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #8 Stud |
| Color: | Yellow |
| T: | 1.0mm (0.04") |
| L: | 25.5mm (1.004") |
| F: | 7.0mm (0.276") |
| E: | 13.0mm (0.512") |
| W: | 9.0mm (0.354") |
| D: | 6.4mm (0.252") |
| D1: | 3.4mm (0.134") |
| D2: | 4.3mm (0.169") |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Voltage Rating: | 600 Volts |
| Max Electrical Current: | 48AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
