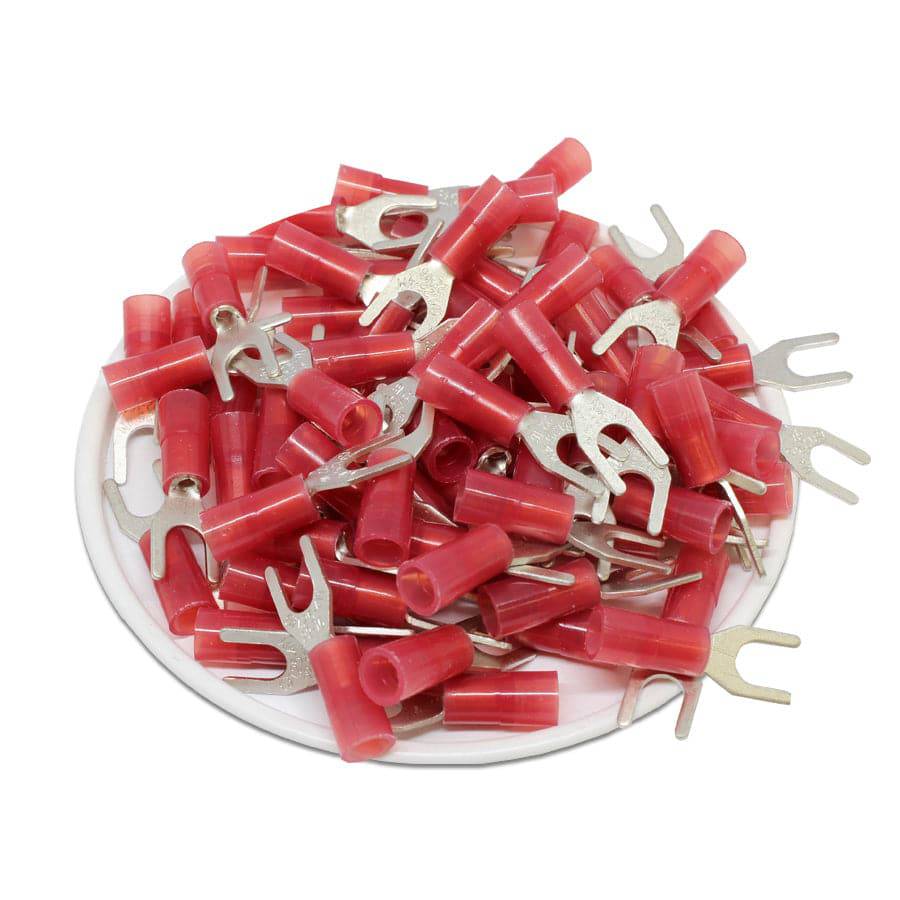

SNYBM1-4 - Nylon Insulated Spade Terminal - 22-16AWG—
$8.17
The Story
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Voltage Rating: | 600 Volts |
| Stud Size: | #8 |
| T: | 0.7mm (0.03") |
| L: | 22.0mm (0.87") |
| F: | 6.5mm (0.26") |
| E: | 11.0mm (0.43") |
| W: | 7.2mm (0.28") |
| D: | 4.5mm (0.18") |
| D1: | 1.7mm (0.06") |
| D2: | 4.3mm (0.17") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
