$3.58
Original: $11.92

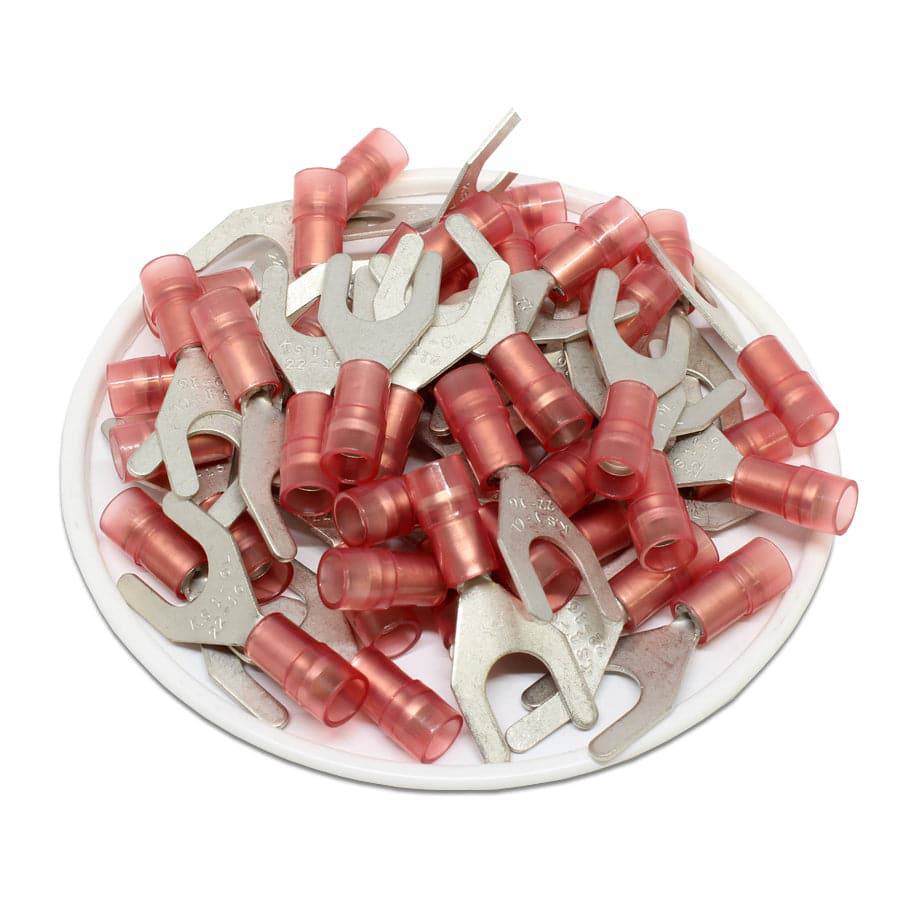

-70%SNYDL1-6 - Nylon Insulated Double Crimp Spade Terminals - 22-16 AWG - 1/4" Stud—
$11.92
$3.58The Story
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16Â AWG |
| Stud Size: | 1/4" Stud |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 28mm (1.10") |
| F: | 11mm (0.43") |
| E: | 11mm (0.43") |
| W: | 12mm (0.47") |
| D: | 4.5mm (0.18") |
| D1: | 1.7mm (0.09") |
| D2: | 6.4mm (0.25") |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Voltage: | 600 Volts |
| Temperature Rating: | 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
