-70%SNYDLL1-3.7 - Nylon Insulated Double Crimp Spade Terminals - 22-16 AWG - #6 Stud—
$11.56
$3.47The Story

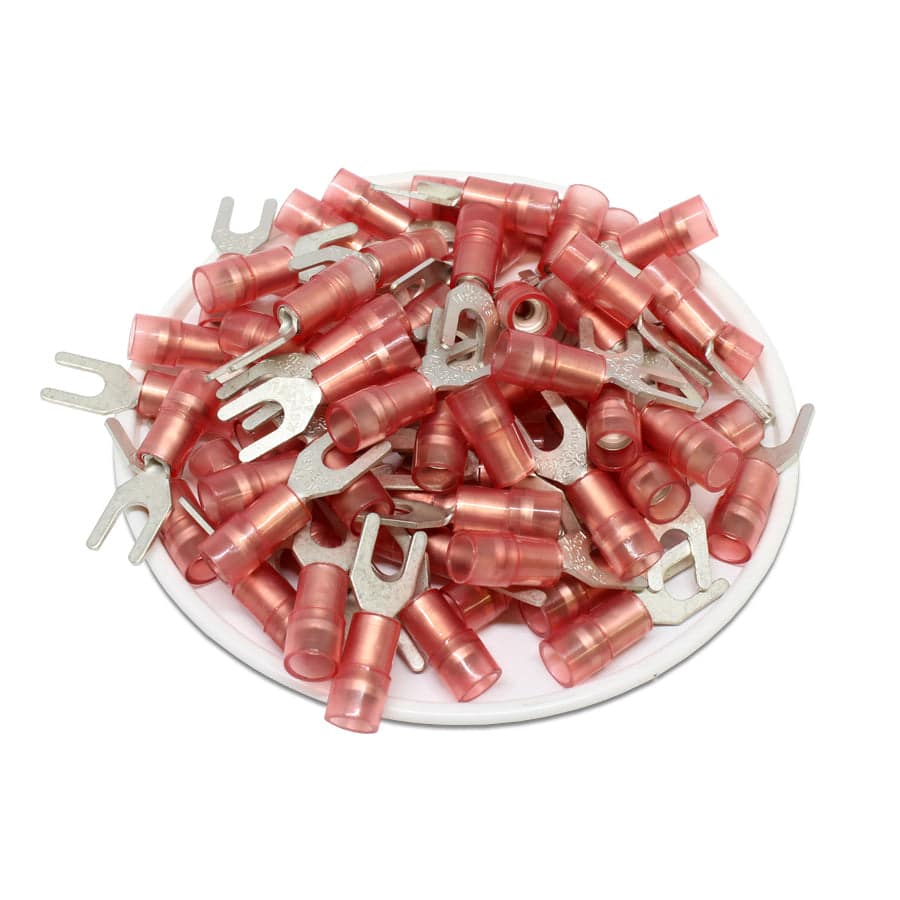

Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16Â AWG |
| Stud Size: | #6 Stud |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 22mm (0.87") |
| F: | 6.5mm (0.26") |
| E: | 11mm (0.43") |
| W: | 7.2mm (0.28") |
| D: | 4.5mm (0.18") |
| D1: | 1.7mm (0.07") |
| D2: | 3.7mm (0.15") |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Voltage: | 600 Volts |
| Temperature Rating: | 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
