STRV1-37 - 22 to 18 AWG Vinyl Insulated Star Ring Terminals, #6 Stud, UL Approved, 100 Pieces
HomeStore

STRV1-37 - 22 to 18 AWG Vinyl Insulated Star Ring Terminals, #6 Stud, UL Approved, 100 Pieces

STRV1-37 - 22 to 18 AWG Vinyl Insulated Star Ring Terminals, #6 Stud, UL Approved, 100 Pieces

$2.42

Original: $8.08

-70%
STRV1-37 - 22 to 18 AWG Vinyl Insulated Star Ring Terminals, #6 Stud, UL Approved, 100 Pieces—

$8.08

$2.42

The Story

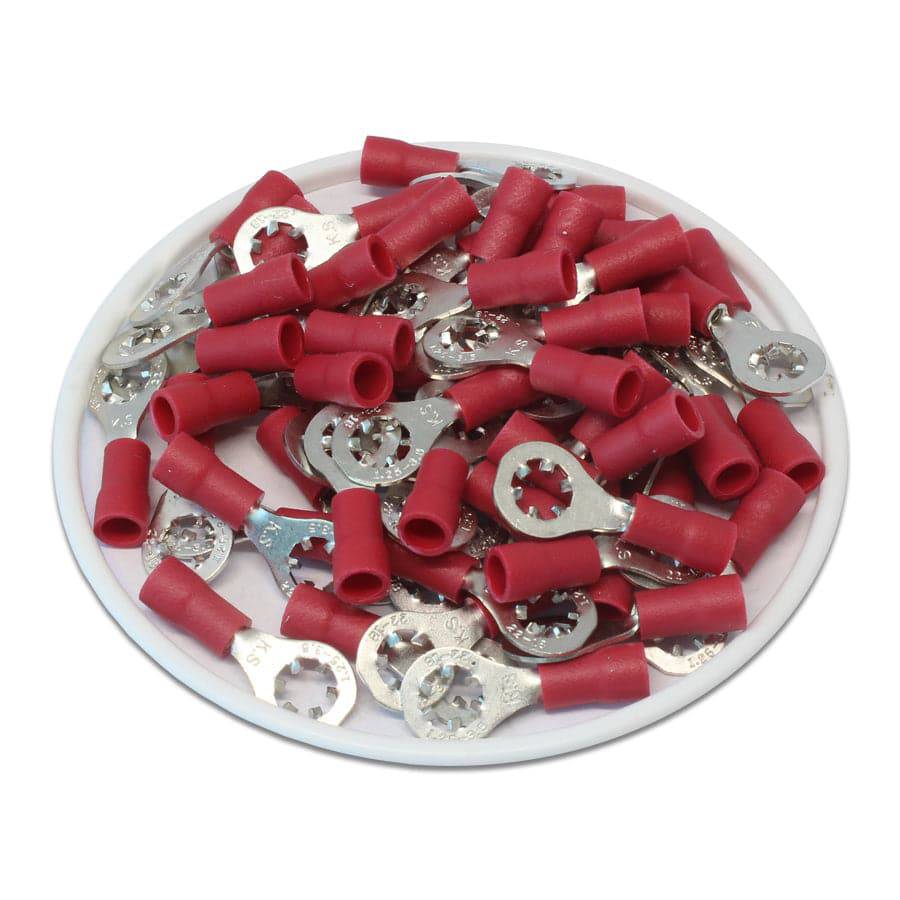

VINYL INSULATED STAR RING TERMINALS

Ring tongue design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 22-10 AWG
T: 0.6mm (0.02")
L: 22.8mm (0.89")
F: 8.5mm (0.34")
E: 10mm (0.39")
W: 9.5mm (0.37")
D 3.8mm (0.15")
D1: 1.7mm (0.07")
D2: 3.7mm (0.15")
D3: 6mm (0.24")
Stud Size: #6
Color: Red
Terminal Material: Tin-Plated Brass
Insulation Material: Vinyl
Seam: Brazed
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
