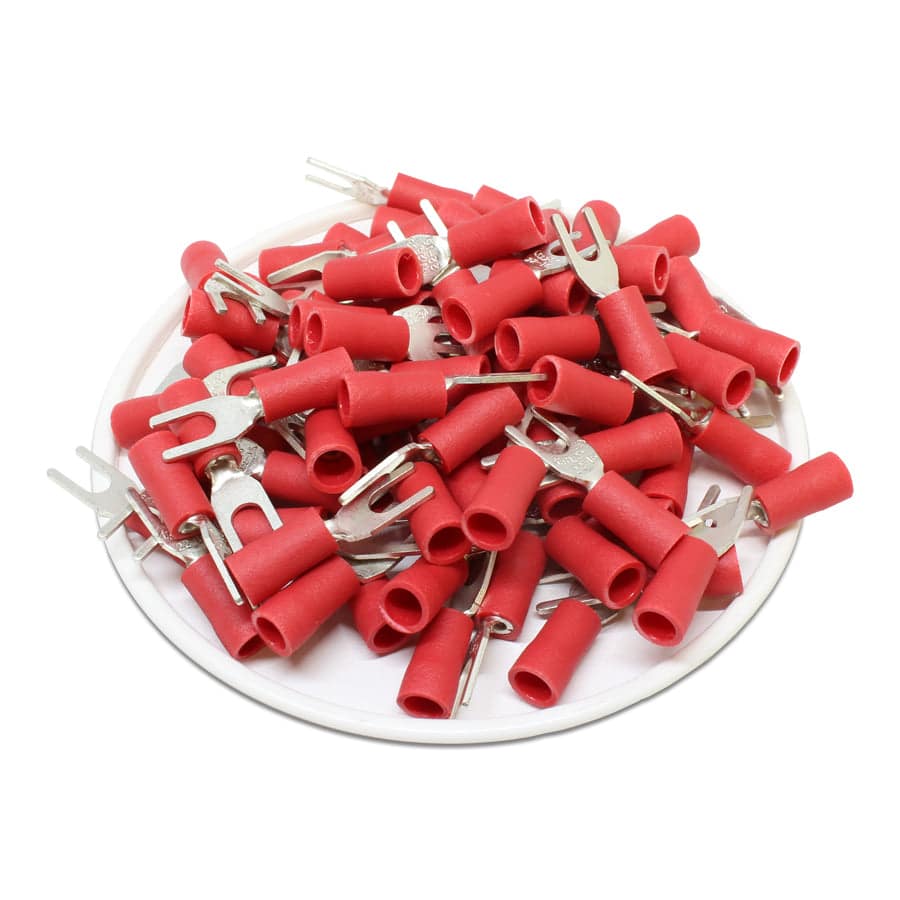

VINYL PVC INSULATED SPADE TERMINALS

Vinyl PVC Insulated Spade Terminals (also known as fork terminals) resemble a two-pronged fork. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.

DIMENSIONS:

Wire Size: 22-16 AWG
Color: Red
Insulation Material: Vinyl (PVC)
Stud Size: #4
Seam: Butted
Terminal Material: Tin-Plated Copper
Temperature Rating: 105oC
Voltage Rating: 600 Volts
T: 0.7mm (0.03")
L: 21.0mm (0.83")
F: 6.5mm (0.26")
E: 10.0mm (0.39")
W: 5.7mm (0.22")
D: 4.0mm (0.16")
D1: 1.7mm (0.06")
D2: 3.2mm (0.13")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
