Original: $8.34
-70%$8.34
$2.50The Story

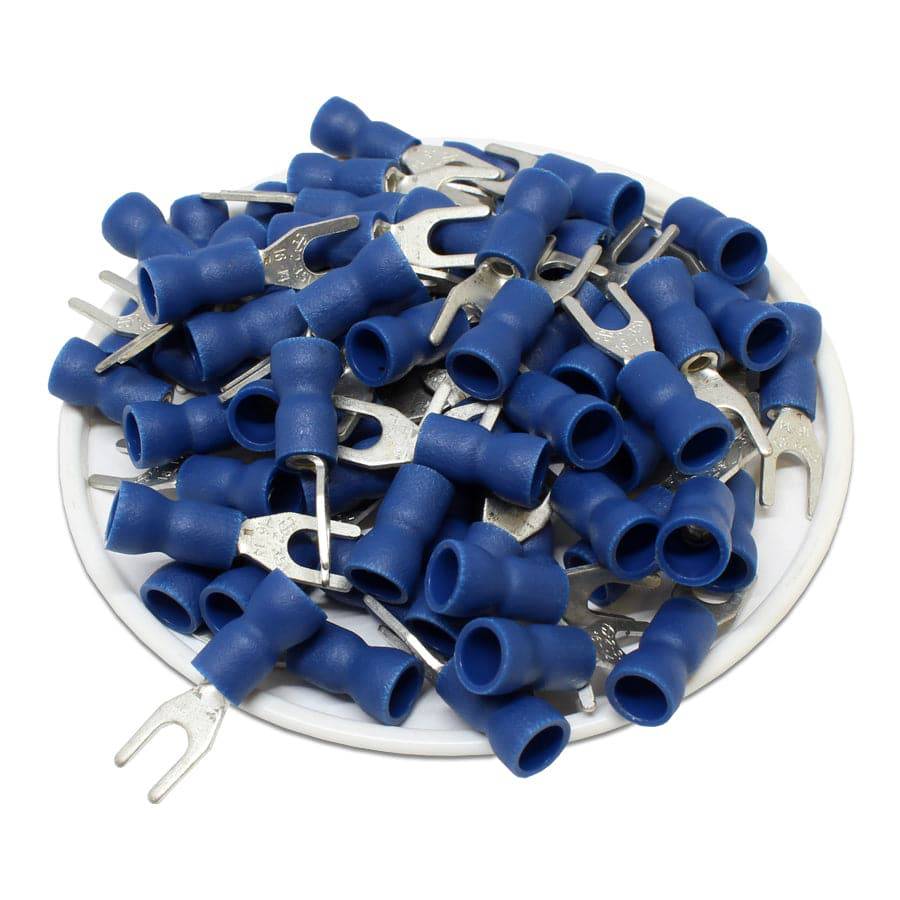

Vinyl insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
| Wire Size: | 16 to 14 AWG |
| Stud Size: | #4 Stud |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| L: | 22.5mm (0.9") |
| F: | 6.5mm (0.26") |
| E: | 11.5mm (0.5") |
| W: | 5.7mm (0.26") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 3.2mm (0.126") |
| Insulation Material: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Max Electrical Current: | 30AMP |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
Â
