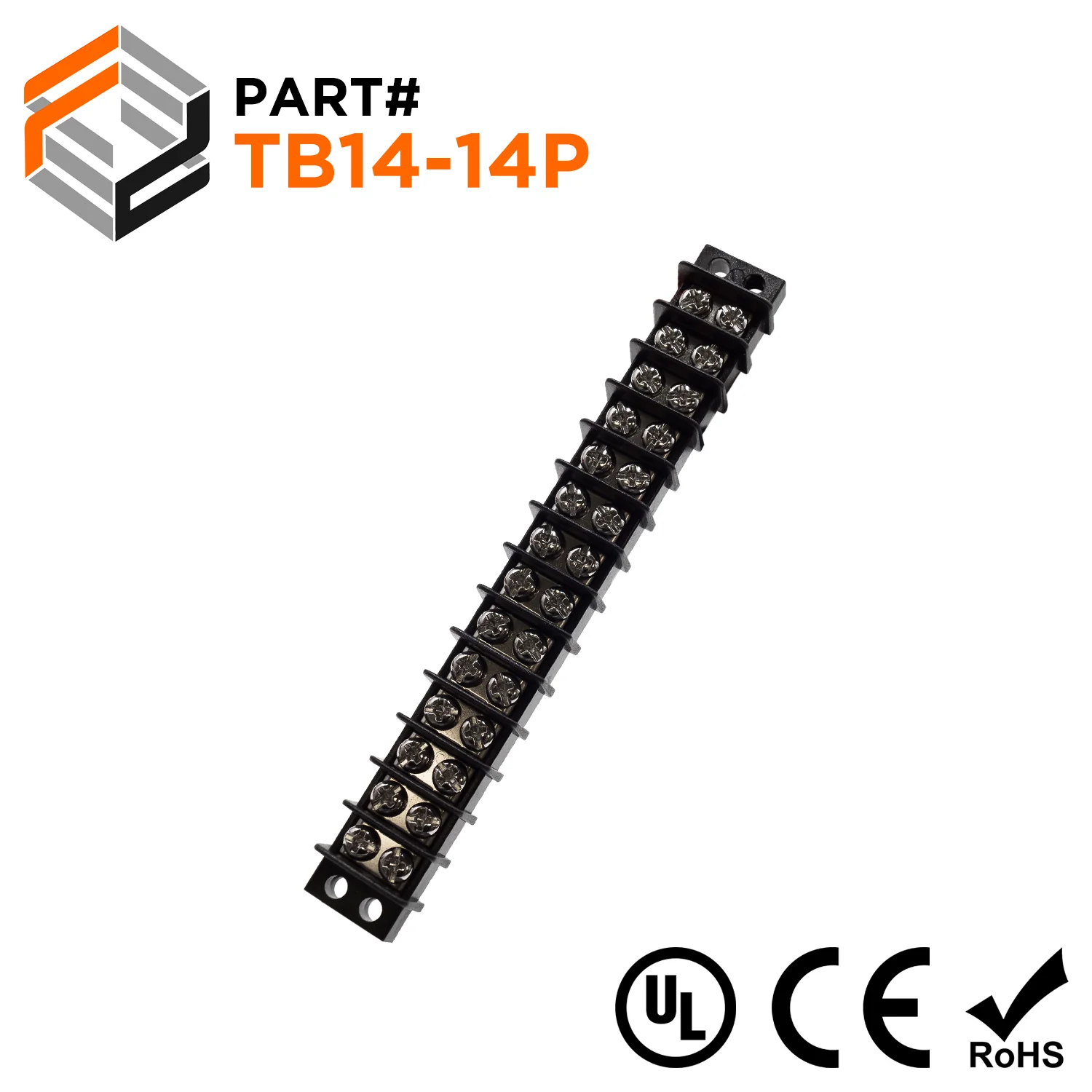

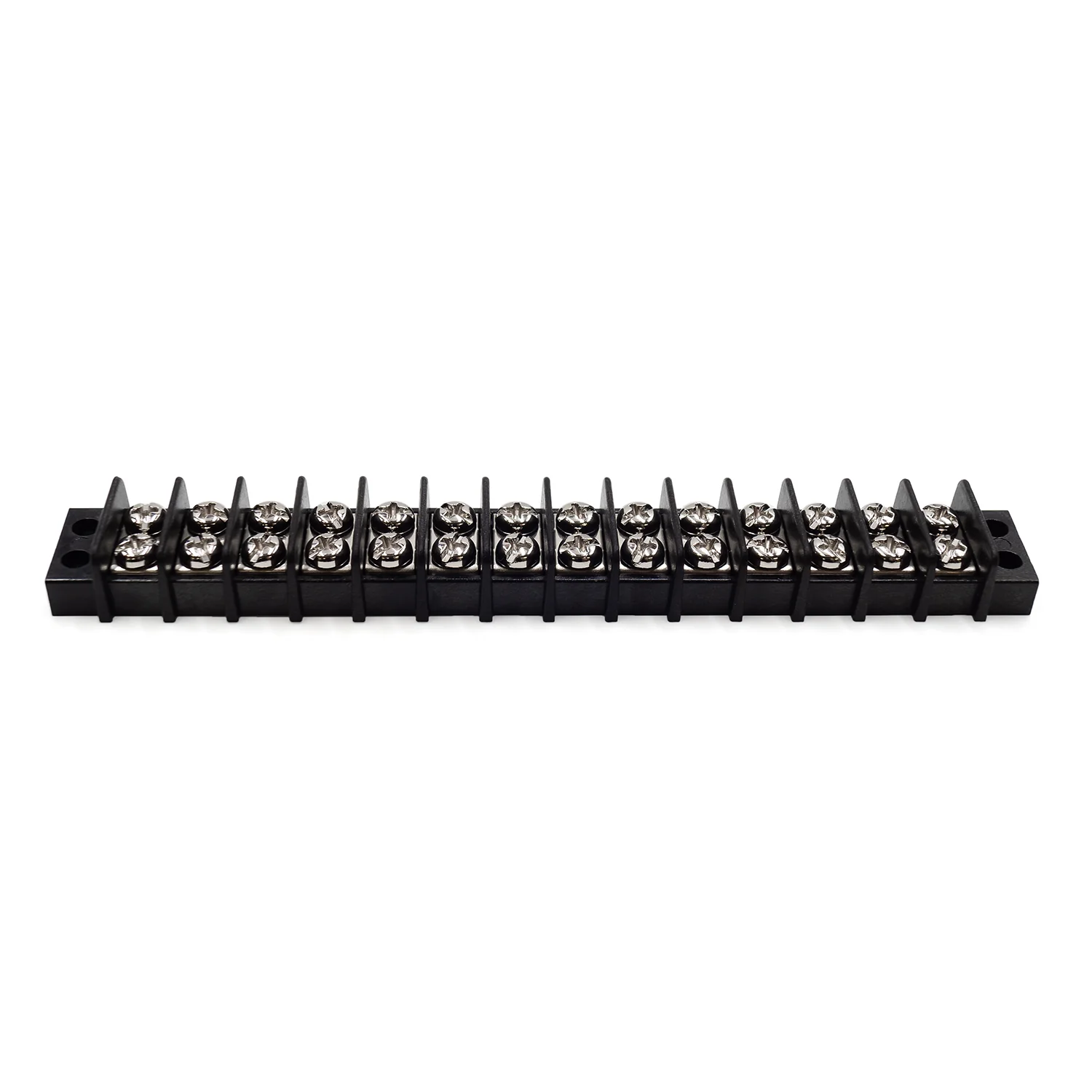

-70%TB14-14P - Barrier Strip Terminal Block, Terminal Strip, 14 Pole, Double Row, 15A, 300V, UL Approved, 1 Pieceâ
$6.72
$2.02The Story
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.Â
Dimensions & Features:
| Number of Poles: | 14 Poles |
| Pitch: | 11.1mm (0.4375") |
| Terminal Spacing: | 9.5mm (0.374") |
| Screw Size: | #5-40 x 1/4"L (Nickel Plated Steel) |
| A (Mount Hole to Mount Hole): | 143.0mm (5.63") |
| B (Length): | 150.1mm (5.91") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 15 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

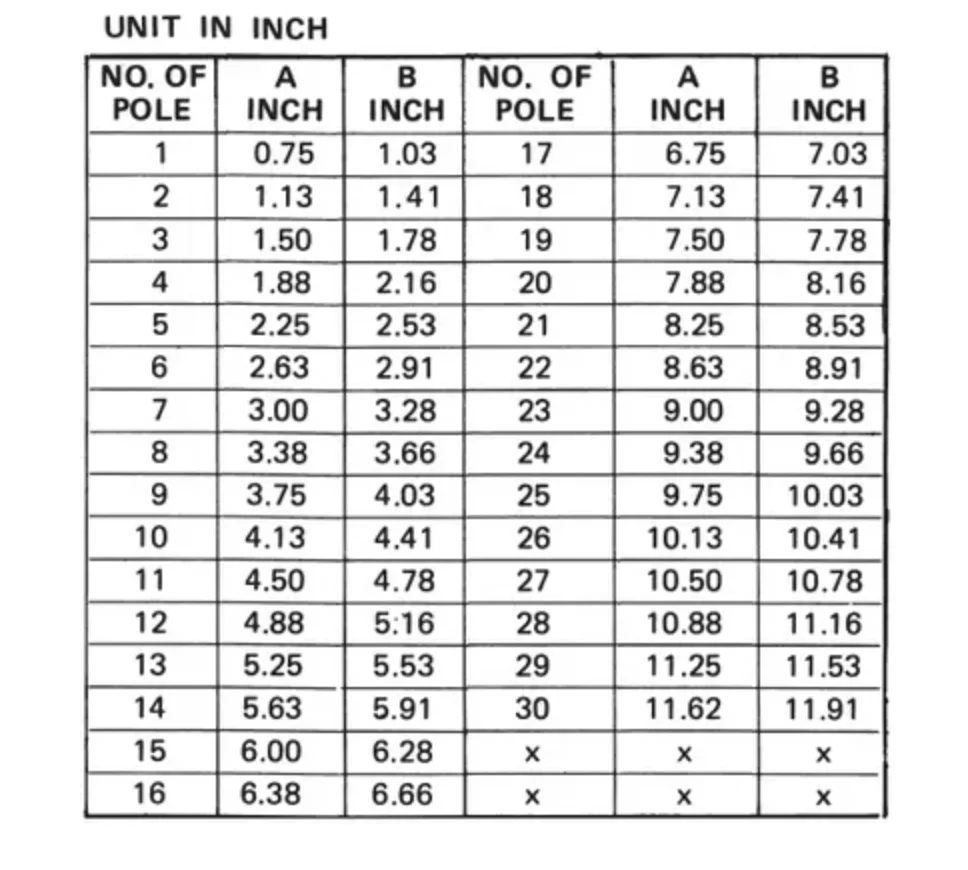

Product Drawing:
