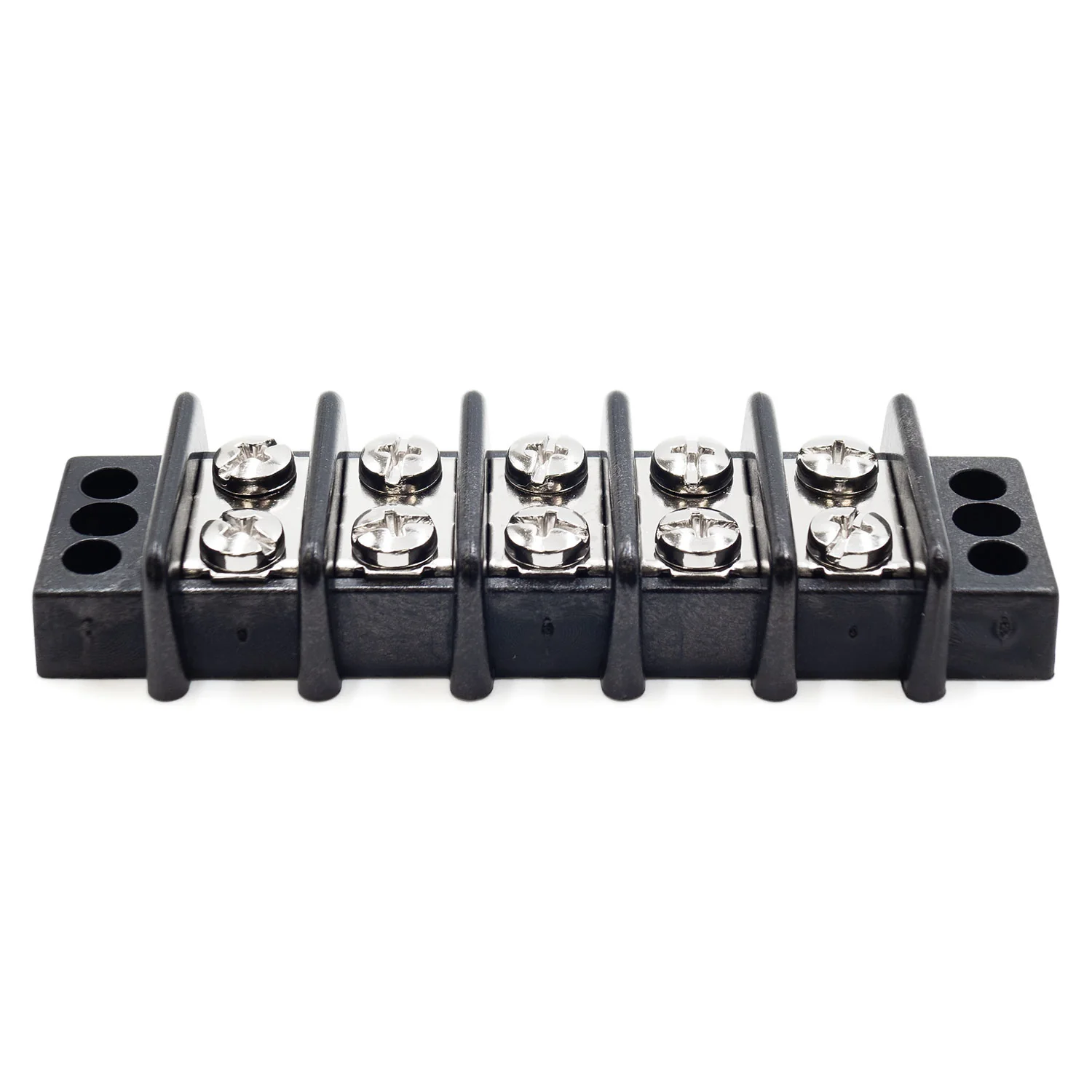

BARRIER STRIP TERMINAL BLOCKS
A barrier strip is an interconnect consisting of connectors or screws, and a metal strip. Barrier strip style terminal blocks prevent electrical shorts between positions on the same block as well as adjacent components. This allows for both connection and termination of wires.
DIMENSIONS & FEATURES:
| Number of Poles: | 5 Poles |
| Pitch: | 0.56" (14.3mm) |
| Terminal Spacing: | 0.44" (11.3mm) |
| A: | 3.38" (85.9mm) |
| B: | 3.82" (97.02mm) |
| Screw: | #8-32 x 5/16"L (Nickel Plated Steel) |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 30AMP |
| Cover Included: | No |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
PRODUCT DRAWING:
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
BARRIER STRIP TERMINAL BLOCKS
A barrier strip is an interconnect consisting of connectors or screws, and a metal strip. Barrier strip style terminal blocks prevent electrical shorts between positions on the same block as well as adjacent components. This allows for both connection and termination of wires.
DIMENSIONS & FEATURES:
| Number of Poles: | 5 Poles |
| Pitch: | 0.56" (14.3mm) |
| Terminal Spacing: | 0.44" (11.3mm) |
| A: | 3.38" (85.9mm) |
| B: | 3.82" (97.02mm) |
| Screw: | #8-32 x 5/16"L (Nickel Plated Steel) |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 30AMP |
| Cover Included: | No |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
PRODUCT DRAWING:
