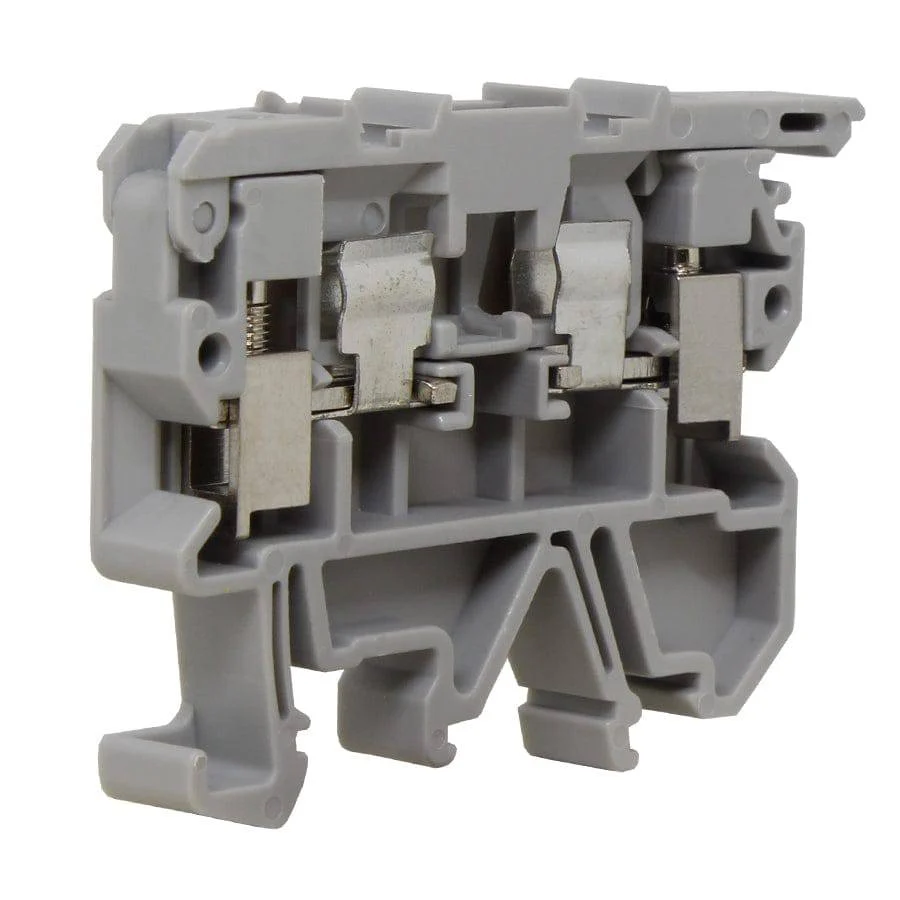

-70%UKJ-2.5RD - Screw Clamping Fuse Terminal Block - 2.5mmā
$1.76
$0.53The Story
UKJ series terminal blocks adopt the screw connection technology. They feature a gas-tight and corrosive-free design. They work for both solid and stranded conductor, with or without ferrules. They are have an efficient body size to save space in the control cabinet and can be mounted in both DIN or G-profile rail.
Dimensions & Features:
| Size: | 2.5mm / 14 AWG |
| Type: | Fuse |
| Color: | Gray |
| Termination Style: | Screw |
| Width / Thickness / Height (mm) | 58.5 / 8 / 43.5 |
| Flammability | UL94 V-2 |
| Screw Thread: | M3 |
| Tighting Torque (Nm): | 0.6-0.8 |
| Stripping Length (mm): | 10 |
| Voltage (V): | 500 |
| Max Operating Current (A): | 6.3 |
| Cross Section (mm2): | 2.5 |
Mounting Rail:
Cross References
Cross References:None:
Documents
Click to view product spec sheet:
Videoes
Click to view product spec sheet:
Description
UKJ series terminal blocks adopt the screw connection technology. They feature a gas-tight and corrosive-free design. They work for both solid and stranded conductor, with or without ferrules. They are have an efficient body size to save space in the control cabinet and can be mounted in both DIN or G-profile rail.
Dimensions & Features:
| Size: | 2.5mm / 14 AWG |
| Type: | Fuse |
| Color: | Gray |
| Termination Style: | Screw |
| Width / Thickness / Height (mm) | 58.5 / 8 / 43.5 |
| Flammability | UL94 V-2 |
| Screw Thread: | M3 |
| Tighting Torque (Nm): | 0.6-0.8 |
| Stripping Length (mm): | 10 |
| Voltage (V): | 500 |
| Max Operating Current (A): | 6.3 |
| Cross Section (mm2): | 2.5 |
Mounting Rail:
Cross References
Cross References:None:
Documents
Click to view product spec sheet:Videoes
Click to view product spec sheet:
