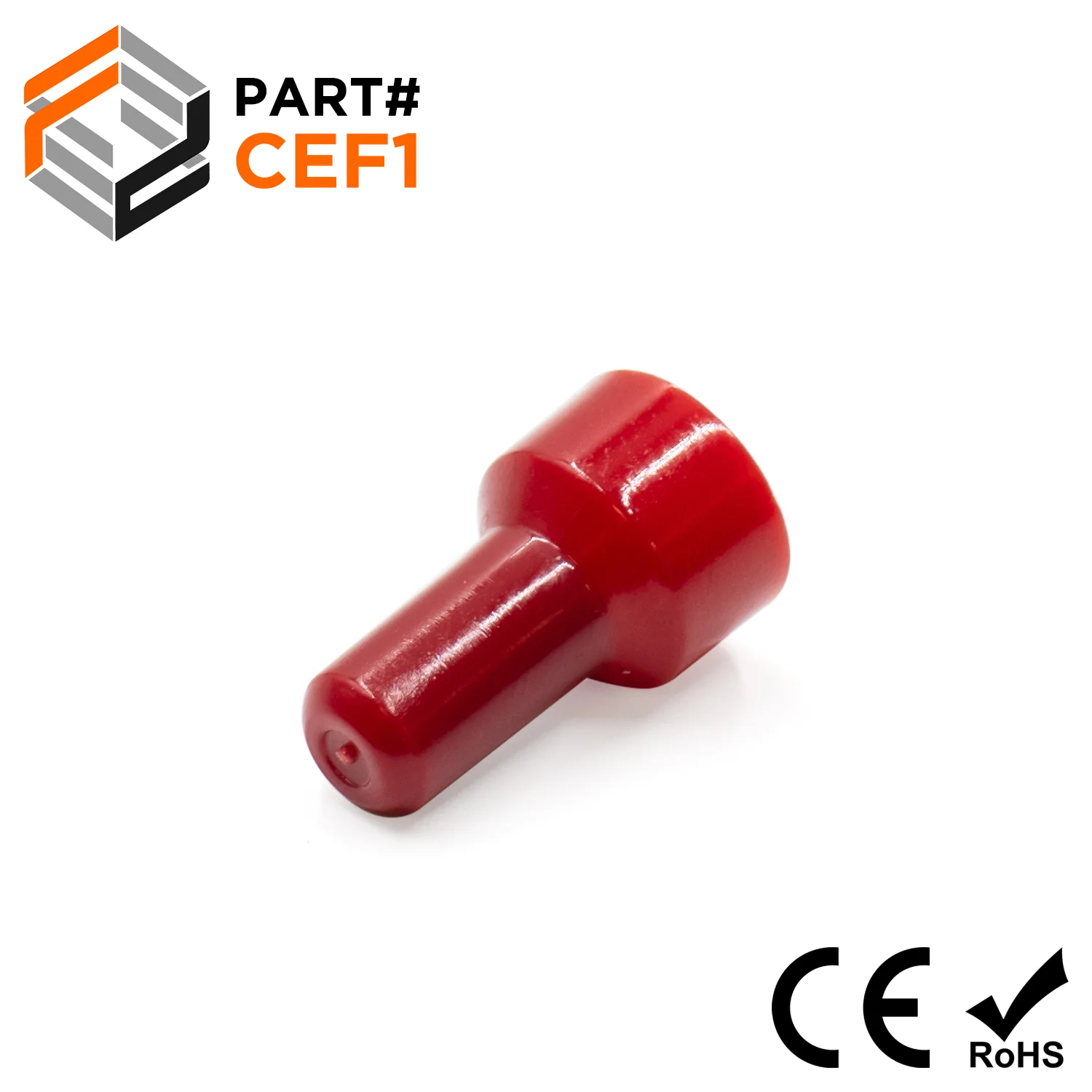

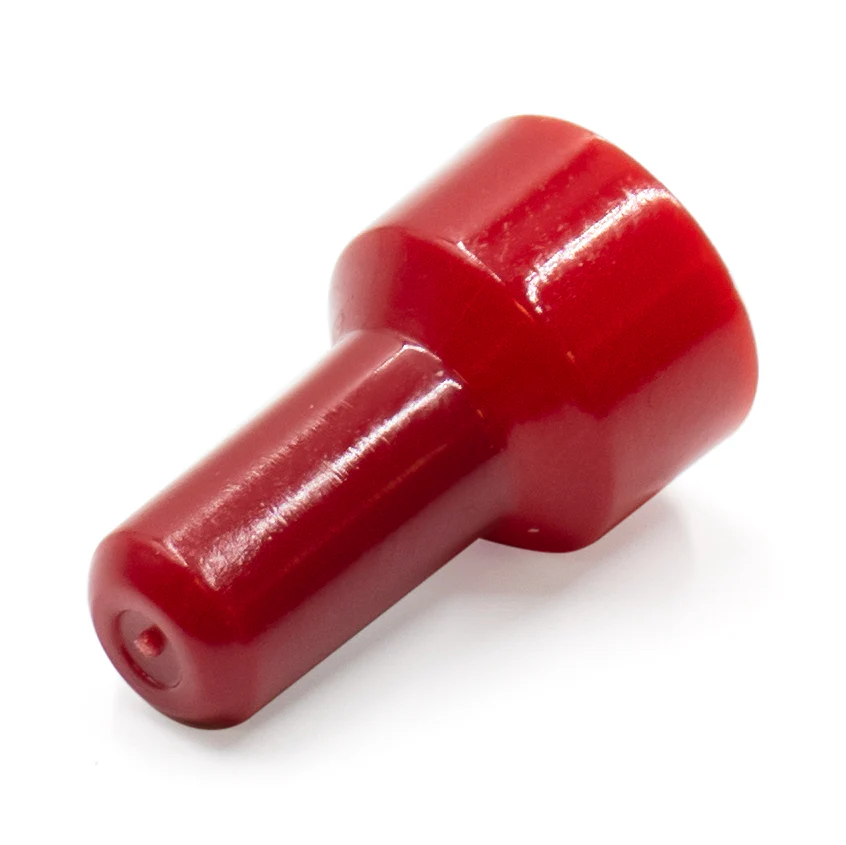

CEF1 - 22 to 16 AWG Closed End Connectors, Pigtail Connectors, 100 Pieces—
$3.96
The Story
Series CE closed end crimpable connectors are designed for use with both stranded and solid wires. They are vibration, chemical and corrosion resistant
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| Color: | Red |
| W: | 5.0mm (0.19") |
| F: | 9.2mm (0.36") |
| L: | 15.2mm (0.59") |
| D: | 7.4mm (0.29") |
| E: | 5.9mm (0.23") |
| T: | 2.5mm (0.098") |
| C: | 5.0mm (0.19") |
| Sleeve Material: | Copper |
| Insulation Material: | Nylon |
| Temperature Rating: | 105°C - 600 Volts |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
