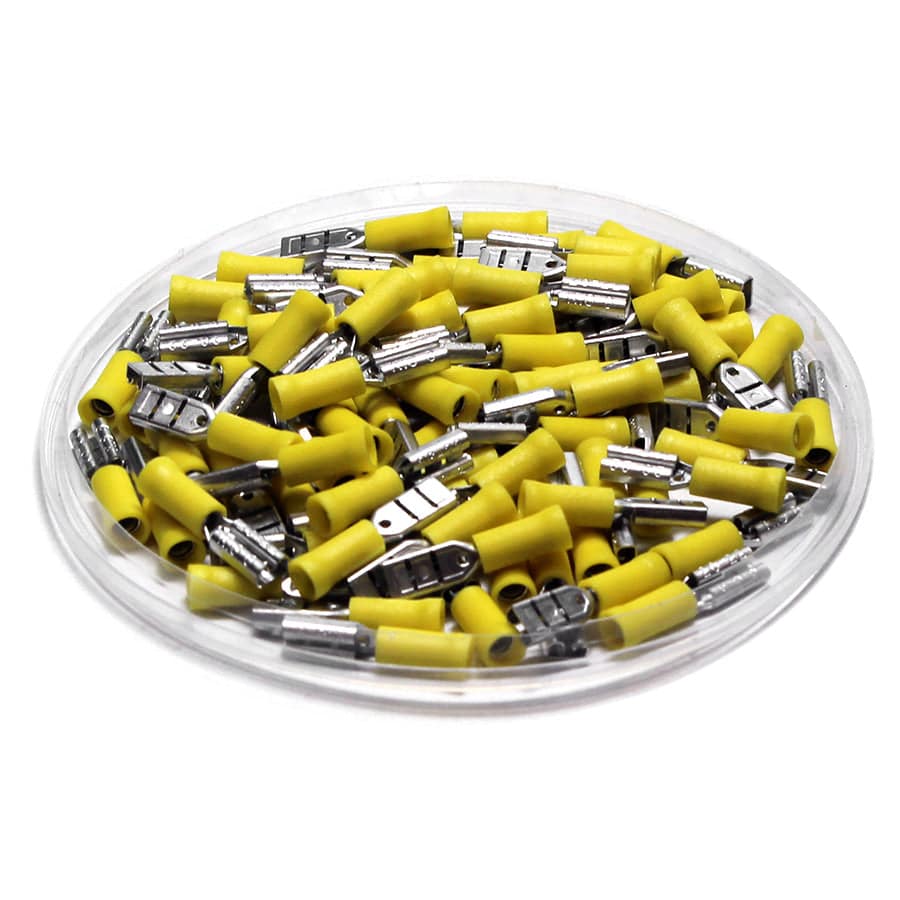

FDD05-110(8) - Vinyl Insulated Female Quick Disconnects - Double Crimp - 26-22 AWG—
$5.18
The Story
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 26-22 AWG |
| Color: | Yellow |
| L: | 16mm (0.63") |
| F: | 6.4mm (0.25") |
| B: | 8.0mm (0.32") |
| W: | 3.2mm (0.13") |
| D: | 3.2mm (0.13") |
| C: | 1.0mm (0.04") |
| Nema Tab: | 0.8 x 2.8mm (0.032 x 0.110") |
| Material: | Tin Plated Brass |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 3A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
