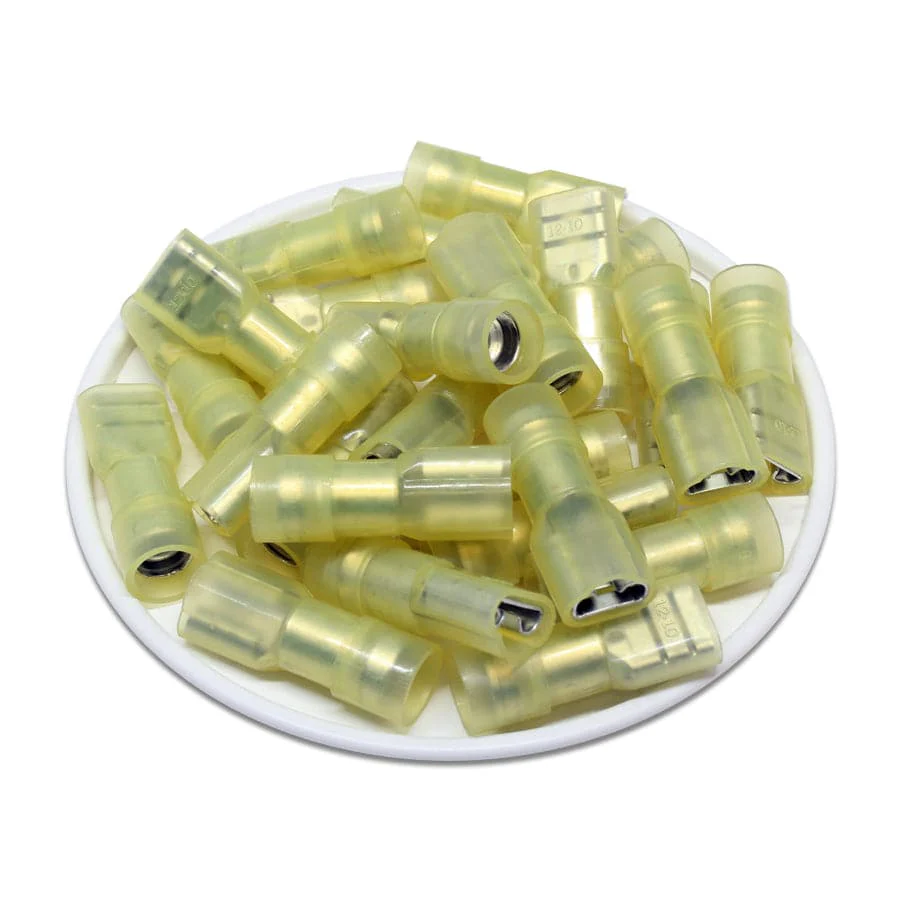

FDFNYD5-250 - 12 to 10 AWG Nylon Insulated Quick Disconnects, Female, Fully Insulated, Yellow, Double Crimp, 50 Pieces
HomeStore

FDFNYD5-250 - 12 to 10 AWG Nylon Insulated Quick Disconnects, Female, Fully Insulated, Yellow, Double Crimp, 50 Pieces

FDFNYD5-250 - 12 to 10 AWG Nylon Insulated Quick Disconnects, Female, Fully Insulated, Yellow, Double Crimp, 50 Pieces

$13.06
FDFNYD5-250 - 12 to 10 AWG Nylon Insulated Quick Disconnects, Female, Fully Insulated, Yellow, Double Crimp, 50 Pieces—
$13.06

The Story

  • Made of tin plated brass and fully insulated with nylon.
  • Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
  • Double Crimp copper sleeve provides maximum electrical conductivity, strengthens barrel and protects wire against stress and high vibration
  • Tolerances may vary from item to item. Please consult the product's Technical Drawing.


    • Dimensions & Features:

    Wire Size: 12-10 AWG
    Color: Yellow
    Insulation Material: Nylon
    Insulation Profile: Dome
    Material: Brass
    Max Electrical Rating: 24 AMP
    Max Electrical Rating: 105°C 300 Volts
    W: 6.6mm (0.26")
    F: 7.5mm (0.29")
    L: 24.2mm (0.96")
    B: 13.0mm (0.51")
    D: 6.5mm (.25")
    T: 0.4mm (0.016")
    Nema Tab: 0.8mm x 6.35mm (0.03" x 0.25")
    UL Approved: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:

    None

    Documents

    Click to view the product spec sheet:
