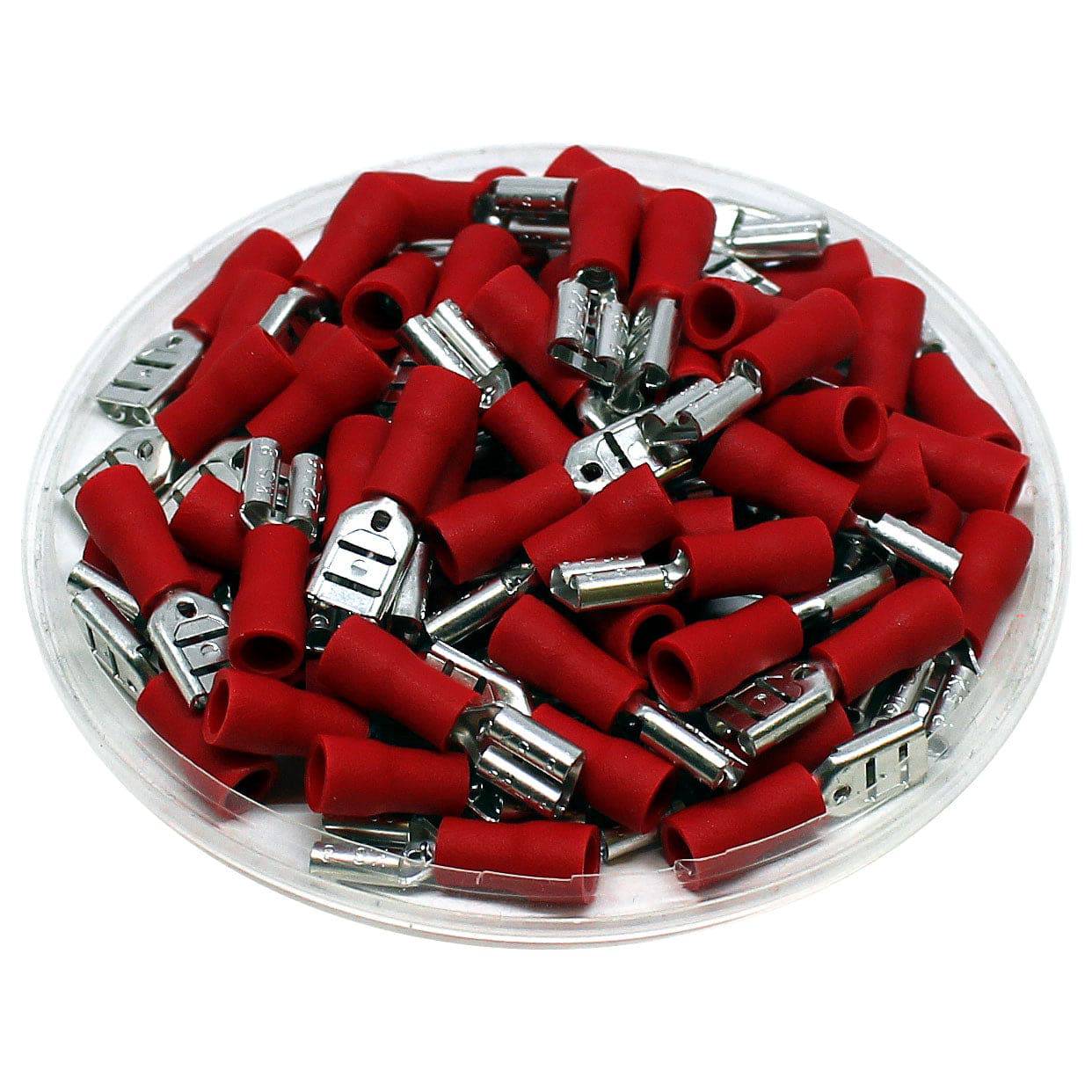

-70%FDV1-205(5) - 22 to 16 AWG Vinyl PVC Insulated Quick Disconnects, Female, Red, Fully Insulated, 100 Pieces—
$5.15
$1.55The Story
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16Â AWG |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Color: | Red |
| Nema Tab: | 0.5 x 5.2mm (0.02Â x 0.205") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| T: | 0.35mm (0.01") |
| L: | 18.5mm (0.73") |
| F: | 5.8mm (0.23") |
| B: | 10.0mm (0.39") |
| W: | 5.7mm (0.22") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
