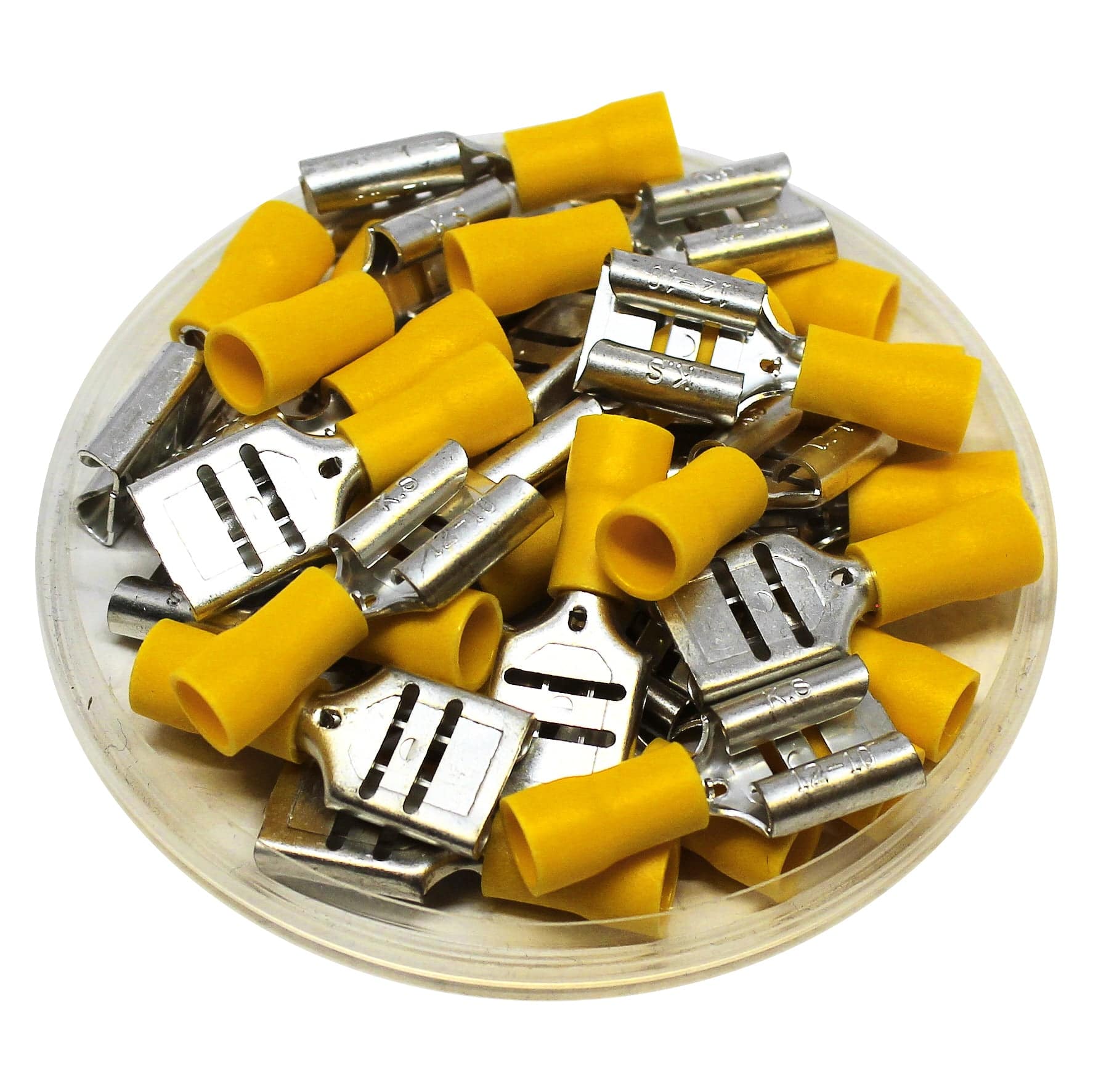

-70%FDV5-375 - 12 to 10 AWG Vinyl PVC Insulated Quick Disconnects, Female, Yellow, Fully Insulated, 100 Pieces—
$22.89
$6.87The Story
Non insulated flag quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10Â AWG |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Color: | Yellow |
| Nema Tab: | 1.2 x 9.4mm (0.47 x 0.37") |
| Temperature Rating: | 75oC |
| Voltage Rating: | 300 Volts |
| T: | 0.50mm (0.02") |
| L: | 28.5mm (1.12") |
| F: | 12.0mm (0.47") |
| B: | 13.0mm (0.51") |
| W: | 10.0mm (0.39") |
| D: | 5.5mm (0.22") |
| C: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
