$1.47
Original: $4.90

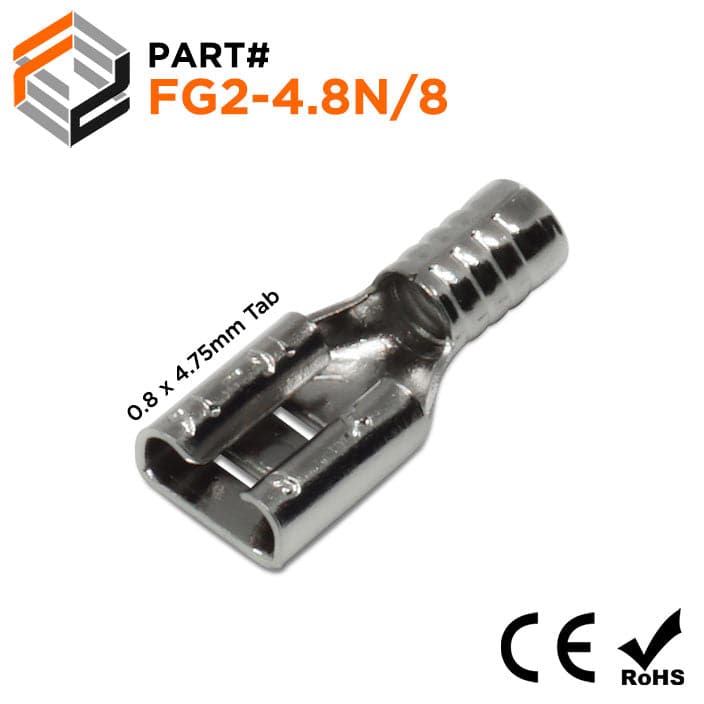

-70%FG2-4.8N/8 - 16 to 14 AWG High Temp Female Quick Disconnects, Nickel Plated Steel, 900°F, 100 Pieces—
$4.90
$1.47The Story
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| L: | 14.0mm (0.551") |
| F: | 6.6mm (0.260") |
| E: | 5.0mm (0.197") |
| W: | 5.8mm (0.228") |
| D1: | 2.3mm (0.091") |
| D: | 3.3mm (0.130") |
| Nema Tab: | 0.8 x 4.75mm (0.03 x 0.187") |
| Max Operating Temp: | 900°F (482°C) |
| Terminal Material: | Nickel Plated Steel |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| L: | 14.0mm (0.551") |
| F: | 6.6mm (0.260") |
| E: | 5.0mm (0.197") |
| W: | 5.8mm (0.228") |
| D1: | 2.3mm (0.091") |
| D: | 3.3mm (0.130") |
| Nema Tab: | 0.8 x 4.75mm (0.03 x 0.187") |
| Max Operating Temp: | 900°F (482°C) |
| Terminal Material: | Nickel Plated Steel |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
