$11.86

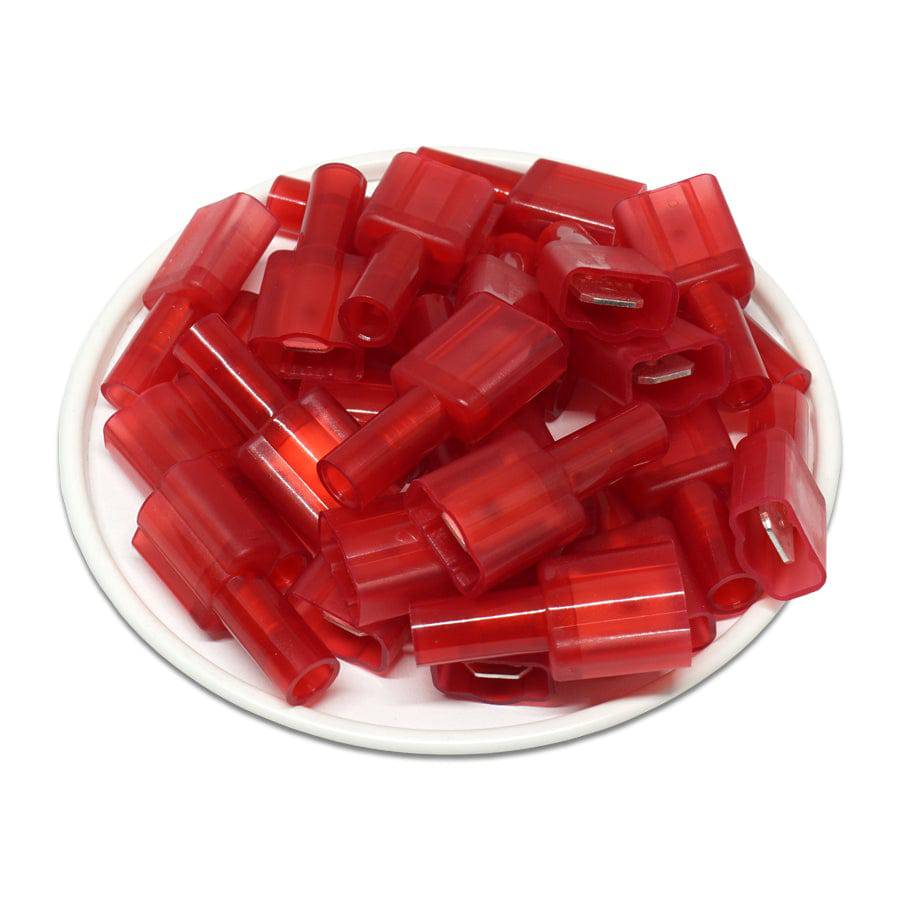

MDFNS1-250 - 22 to 16 AWG Nylon Insulated Quick Disconnects, Male, Fully Insulated, 100 Pieces—
$11.86
The Story
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:

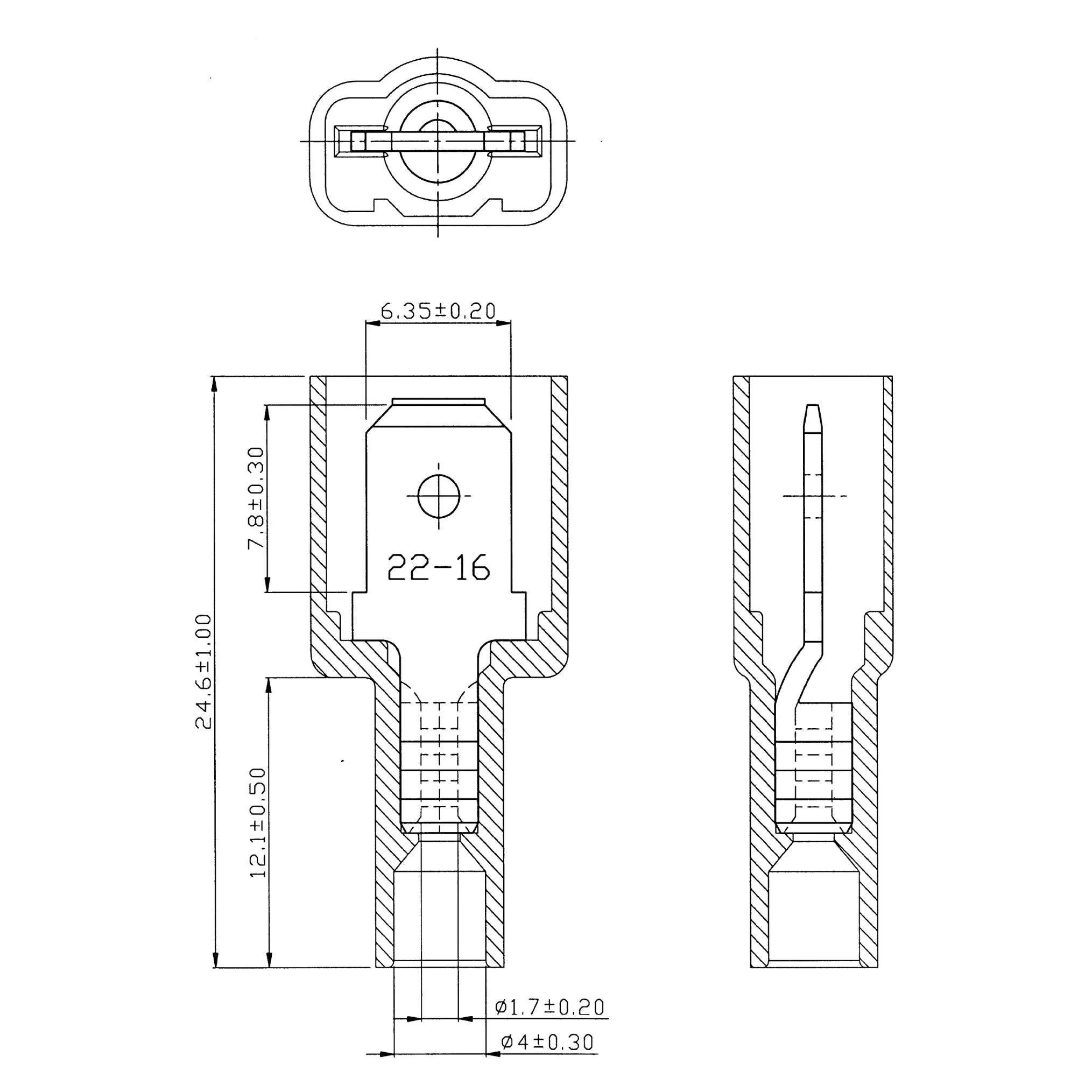

Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 22-16Â AWG |
| Color: | Red |
| W: | 6.35mm (0.25") |
| F: | 7.7mm (0.3") |
| L: | 24.6mm (0.97") |
| B: | 12.1mm (0.48") |
| D: | 4.0mm (0.16") |
| T: | 0.8mm (0.03") |
| Nema Tab: | 0.8 x 6.35mm (0.032 x 0.250") |
| Material: | Tin-Plated Brass |
| Max Electrical Rating: | 105°C - 300 Volts |
| Max Electrical Current: | 10A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
