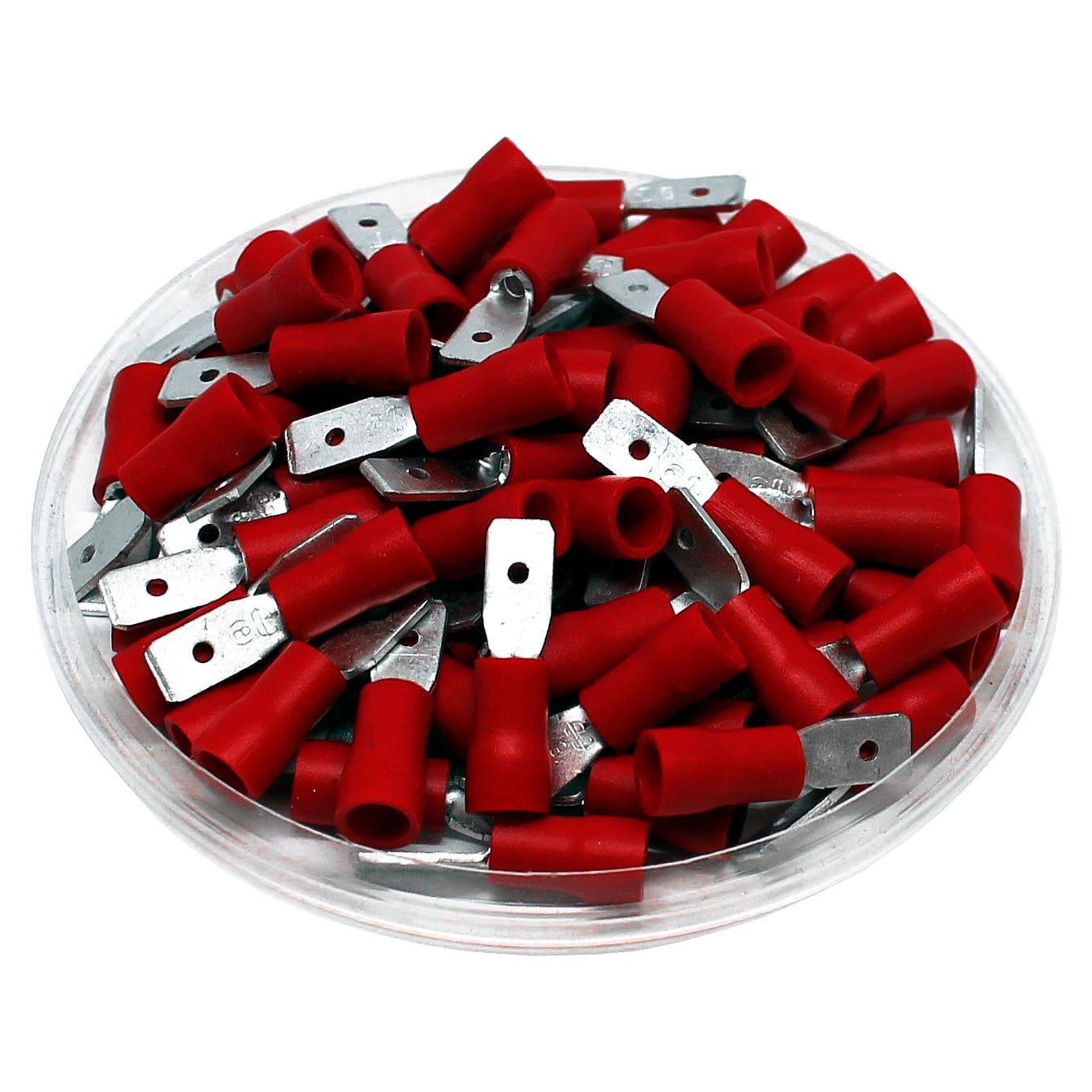

MDV1-187(5) - 22 to 16 AWG Vinyl PVC Insulated Quick Disconnects, Male, Red, 100 Pieces—
$3.97
The Story
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 22-16Â AWG |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Vinyl |
| Voltage Rating: | 300 Volts |
| Temperature Rating: | 75oC |
| NEMA Tab: | 0.5mm X 4.75mm (0.20" X 0.18") |
| L: | 19.0mm (0.70") |
| F: | 6.5mm (0.26") |
| W: | 10.0mm (0.39") |
| T: | 4.8mm (0.19") |
| B: | 4.0mm (0.16") |
| D: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
