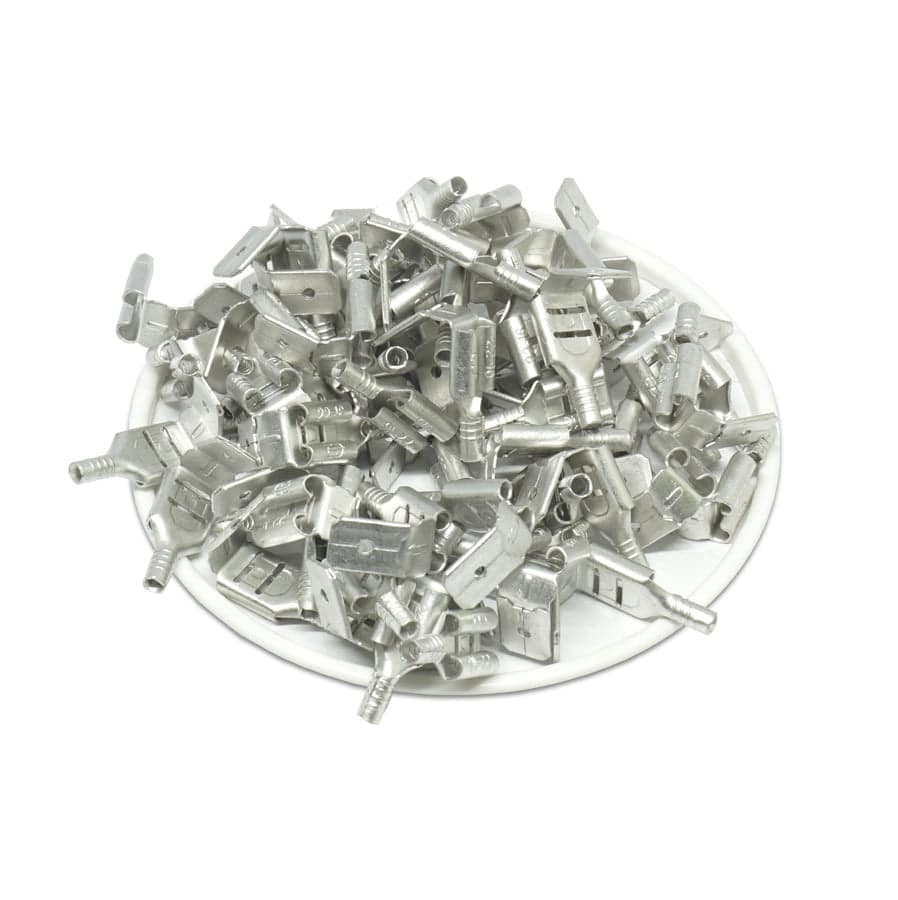

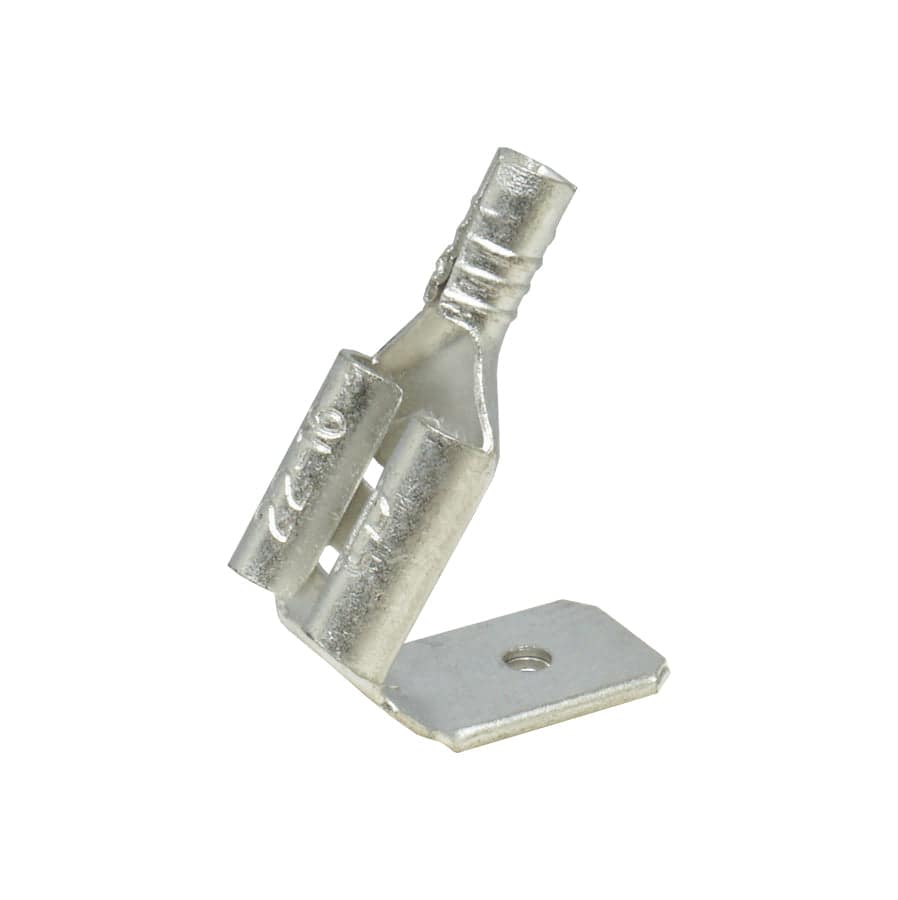

-70%PBDN1-250 - Uninsulated Piggyback Terminal - 22-16 AWG - 0.8x6.3mm tab—
$8.16
$2.45The Story
Piggyback disconnects can be used when other male disconnects are limited. It allows another quick disconnect to be connected to its tab. This creates more versatility in points of connection. Multiple connections allow additional circuits to be added to existing equipment without a full rework.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| L: | 16.1mm (0.63") |
| F: | 7.8mm (0.31") |
| W: | 6.7mm (0.26") |
| B: | 5.2mm (0.20") |
| C: | 1.8mm (0.07") |
| D: | 2.7mm (0.11") |
| W1: | 6.2mm (0.24") |
| F1: | 8.7mm (0.34") |
| Nema Tab: | 0.02" X 0.25" (0.8mm X 6.35mm) |
| Terminal Material: | Brass |
| AMP Rating: | 10 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
