607LR - 16-14AWG Female Open Barrel Quick Disconnect - No Locking Tab - .205" x .20" NEMA Tabā
$5.18
The Story

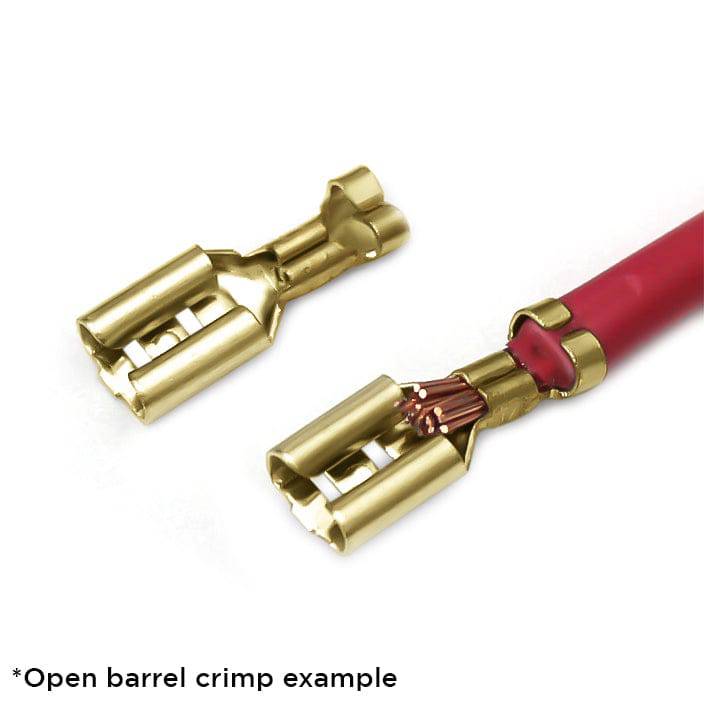

Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| L: | 15.7mm (0.618") |
| F: | 6.3mm (0.248") |
| W: | 5.8mm (0.228") |
| D: | 5.2mm (0.20") |
| D1: | 2.51mm (0.099") |
| T: | 2.51mm (0.099") |
| Nema Tab: | 0.020 x 0.205" (0.5 x 5.2mm) |
| Material: | Brass - Untinned |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
