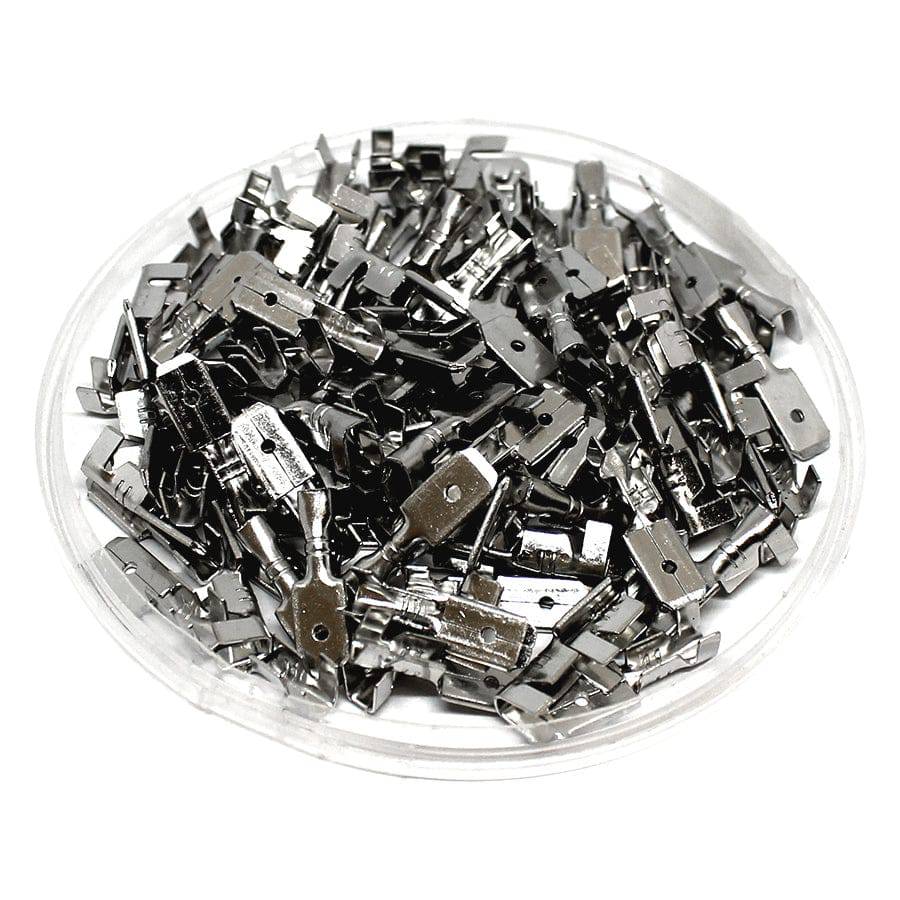

OPEN BARREL STYLE QUICK DISCONNECTS
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
DIMENSIONS & FEATURES:
| Wire Size: | 18 to 16 AWG |
| NEMA Tab: | 4.8Â x 0.8mm (0.19" x 0.031") |
| L: | 16mm (0.62") |
| W: | 4.8mm (0.19") |
| T: | 0.8mm (0.031") |
| Material: | Tin Plated Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Â
