The Story

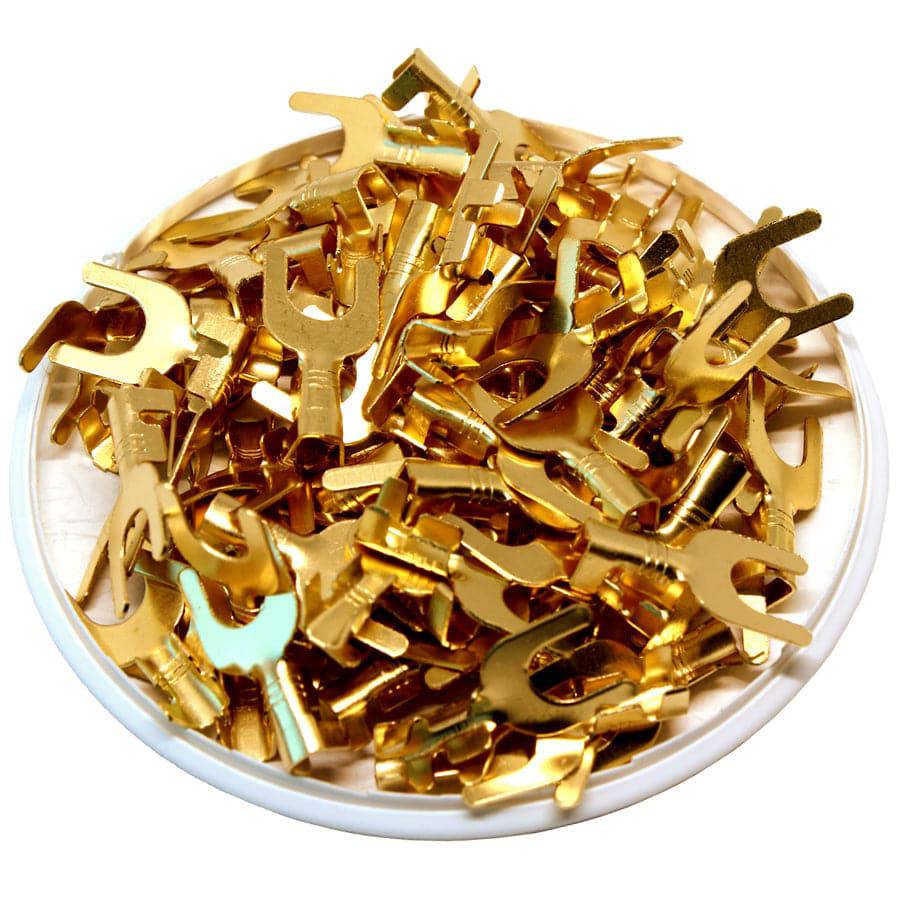

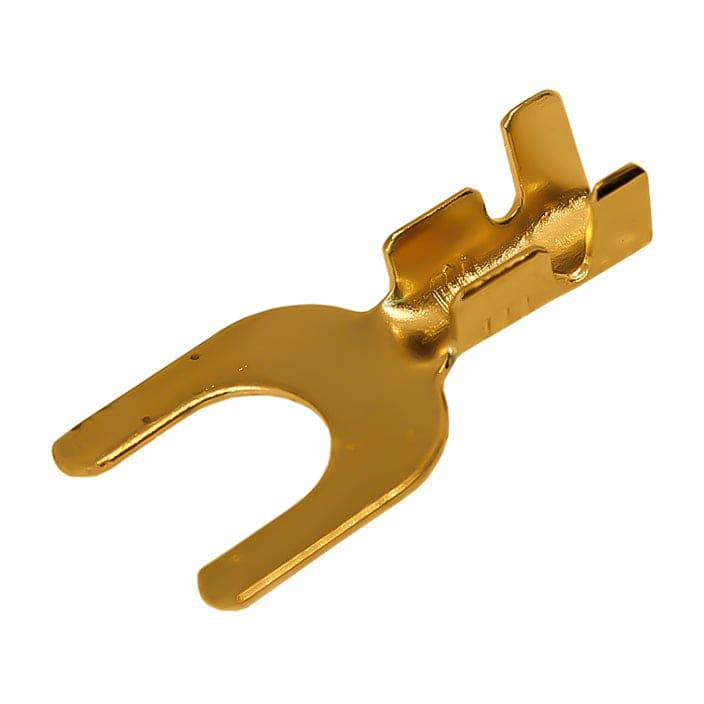

OPEN BARREL STYLE SPADE/FORK TERMINALS
Open barrel terminals have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
DIMENSIONS & FEATURES:
| Wire Size: | 16 to 14 AWG |
| Stud Size: | 1/4" (6.5mm) |
| W: | 10.5mm (0.41") |
| D: | 6.5mm (0.26") |
| E: | |
| L: | 16mm (0.63") |
| Material: | Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
OPEN BARREL STYLE SPADE/FORK TERMINALS
Open barrel terminals have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
DIMENSIONS & FEATURES:
| Wire Size: | 16 to 14 AWG |
| Stud Size: | 1/4" (6.5mm) |
| W: | 10.5mm (0.41") |
| D: | 6.5mm (0.26") |
| E: | |
| L: | 16mm (0.63") |
| Material: | Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
